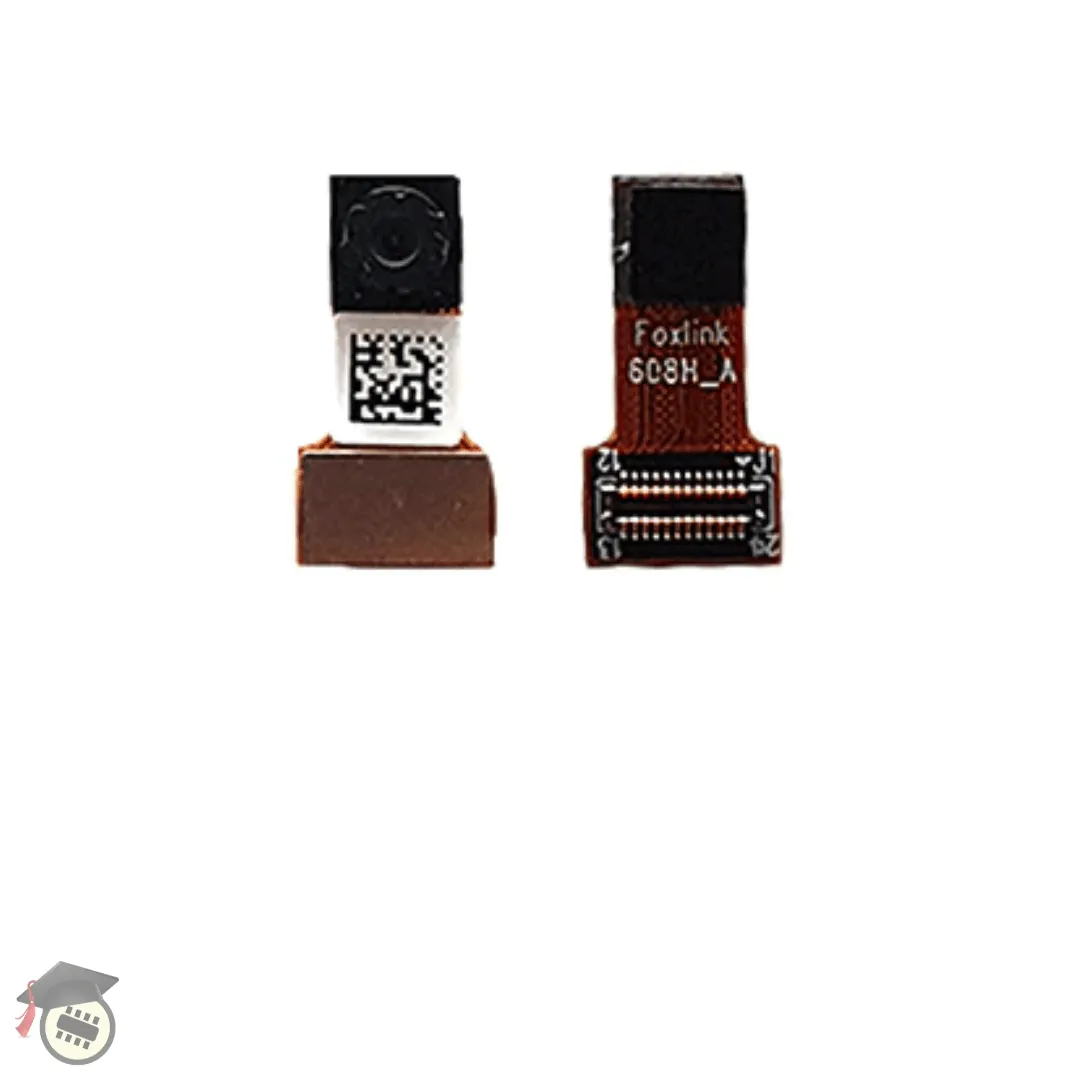

This is a color (Bayer RGB) camera module to exchange the monochrome camera module for, which comes with the AI-deck 1.1. This is handy if you want to work with color images.

Features

• Himax -ANA color compact camera module
• Ultra low power (ULP)
• Less than 4mW at QVGA 60FPS
• Less than 2mW at QVGA 30FPS,
• Less than 1.1mW at QQVGA 30FPS.
• High sensitivity 3.6μ BrightSense TM pixel technology
• 324 x 324 pixel
• 324 x 244 window mode up to 60FPS
• 2x2 monochrome binning mode up to 120FPS
• Black level calibration circuit
• Automatic exposure and gain control loop
• Self-oscillator and motion detection circuit with interrupt output to reduce host computation
• Commands to optimize the system power consumption

Package Contents

• 1 x Himax HM01B0-ANA color (Bayer RGB) camera module
