Product Details
＋
Description

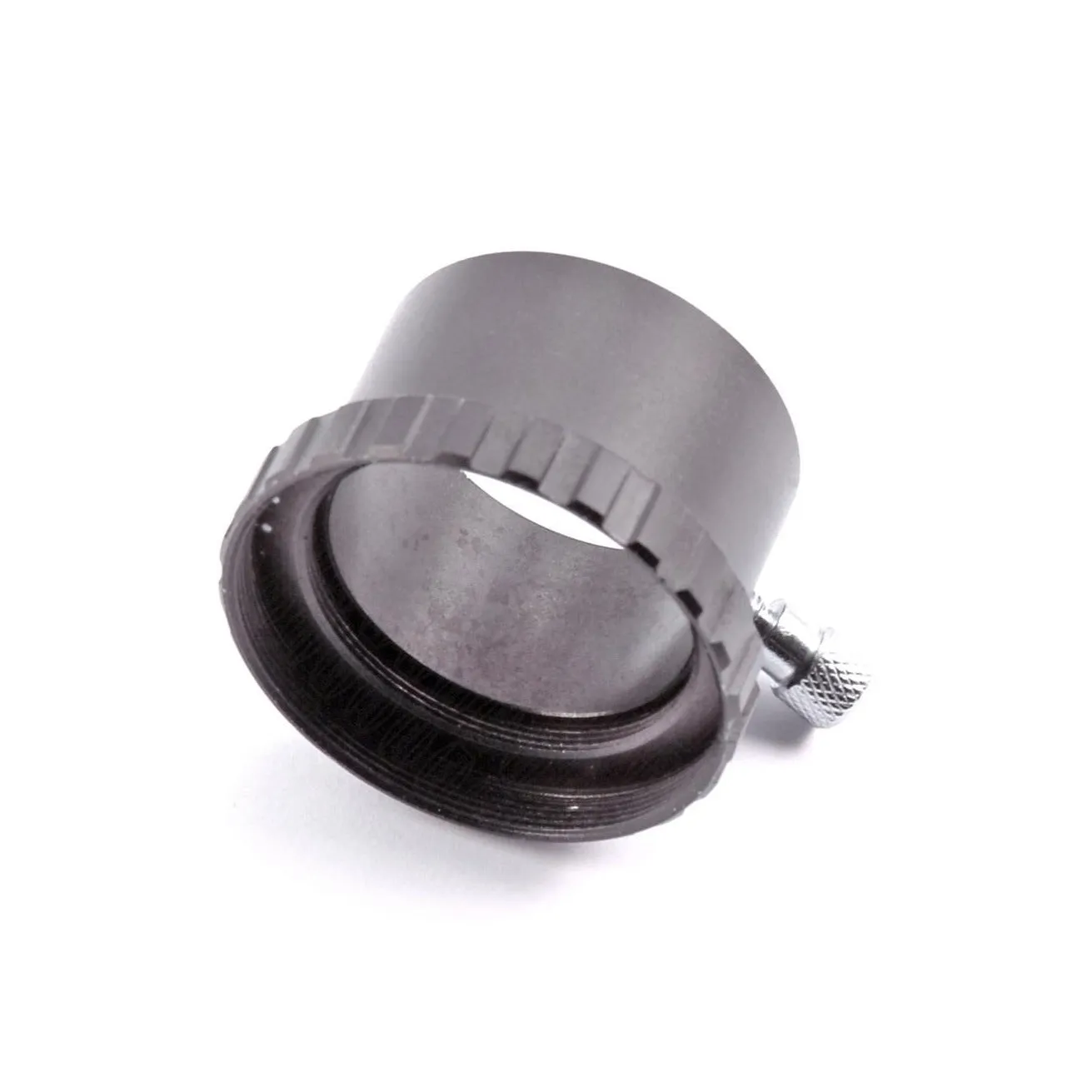

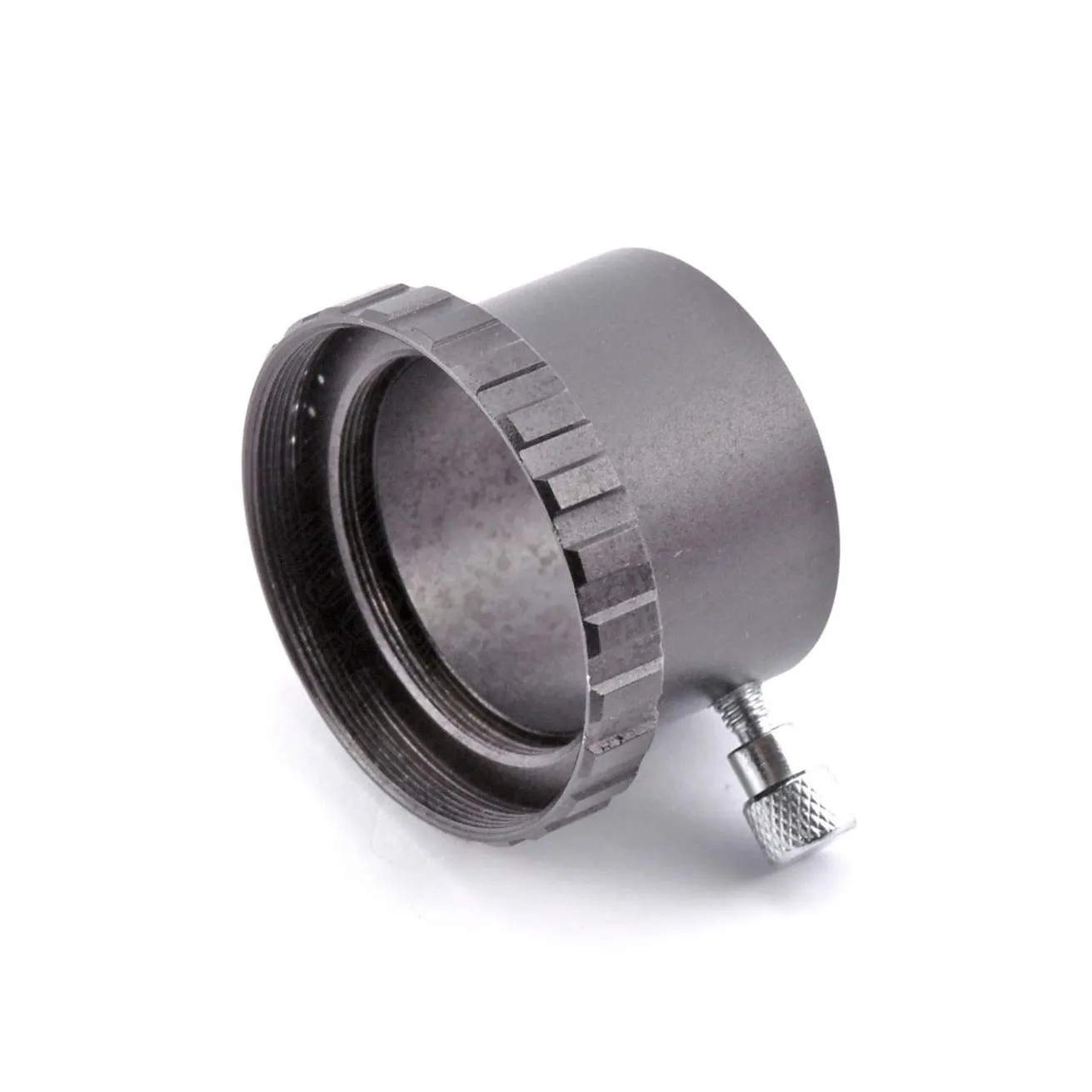

- Eyepiece 1¼ "/ T-2 internal thread, low priced version with M 4 screw (alternatively: T-2 component # 08A)
- 1 M4 clamp screw
- Telescope side with T-2 internal thread
- For 1¼" eyepieces or connecters
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2458120 |
| EAN CODE | 4047825010186 |
| WEIGHT (NETTO) | 0.038 |
| OPTICAL LENGTH (MM) | 23,5 |
| CLAMPING SYSTEM | Screw clamps |
| USAGE | for rotation clamping |
| SCREW TYPE | M4 clamping screw |
| INNER DIAMETER / CLEAR APERTURE (MM) | 31,75 (1¼") |
| OUTER DIAMETER | 45 |
| INNER CONNECTION (LENS SIDED) | Thread, T-2 (M42 x 0,75) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Clamp, 1¼" |
| COMPATIBLE BRANDS | Astro T-2, UNC, Baader Planetarium, Celestron |
| TYPE OF ADAPTER | Eyepiece Clamp, Reducing piece |
