Product Details
＋
Description

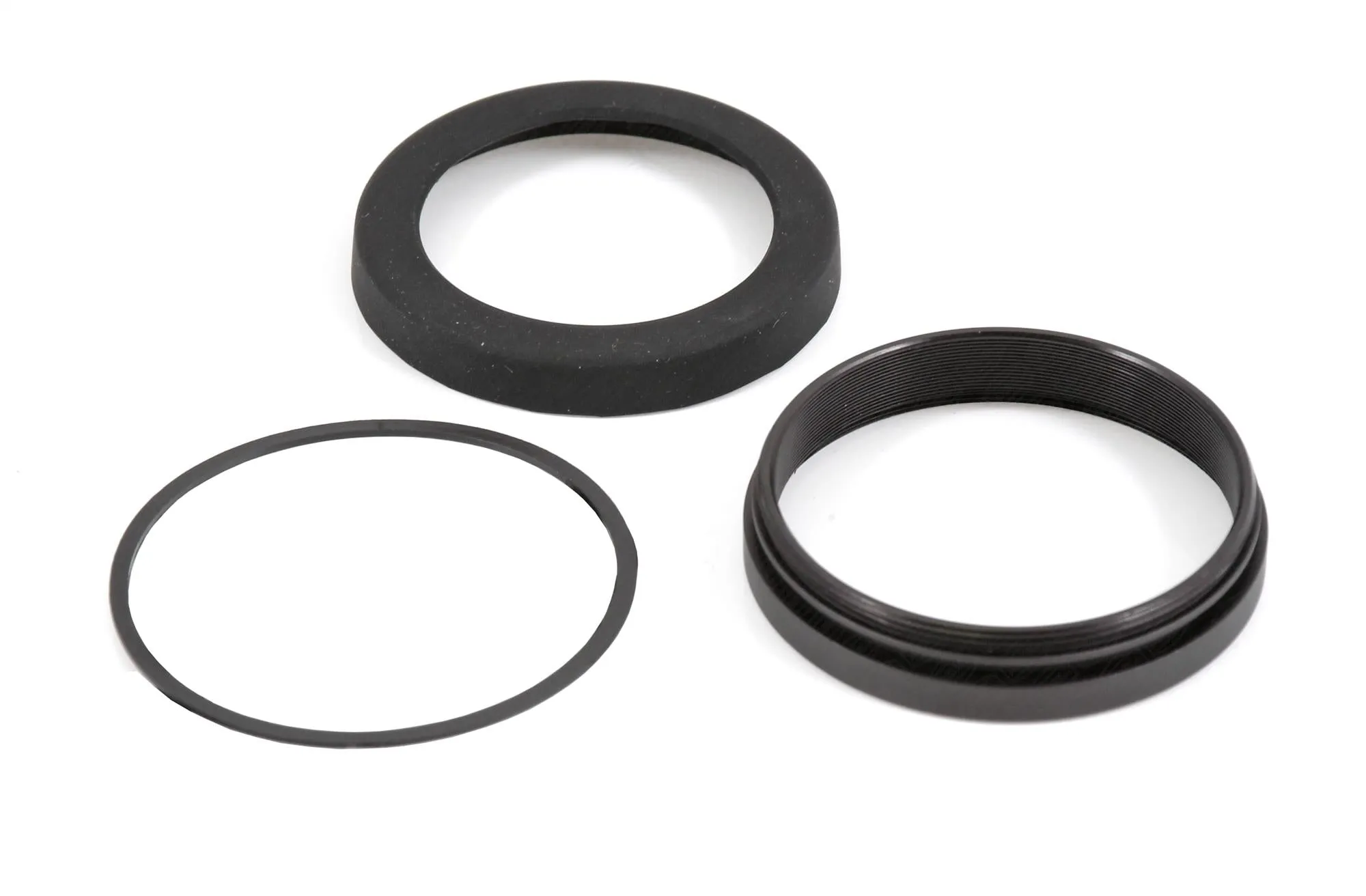

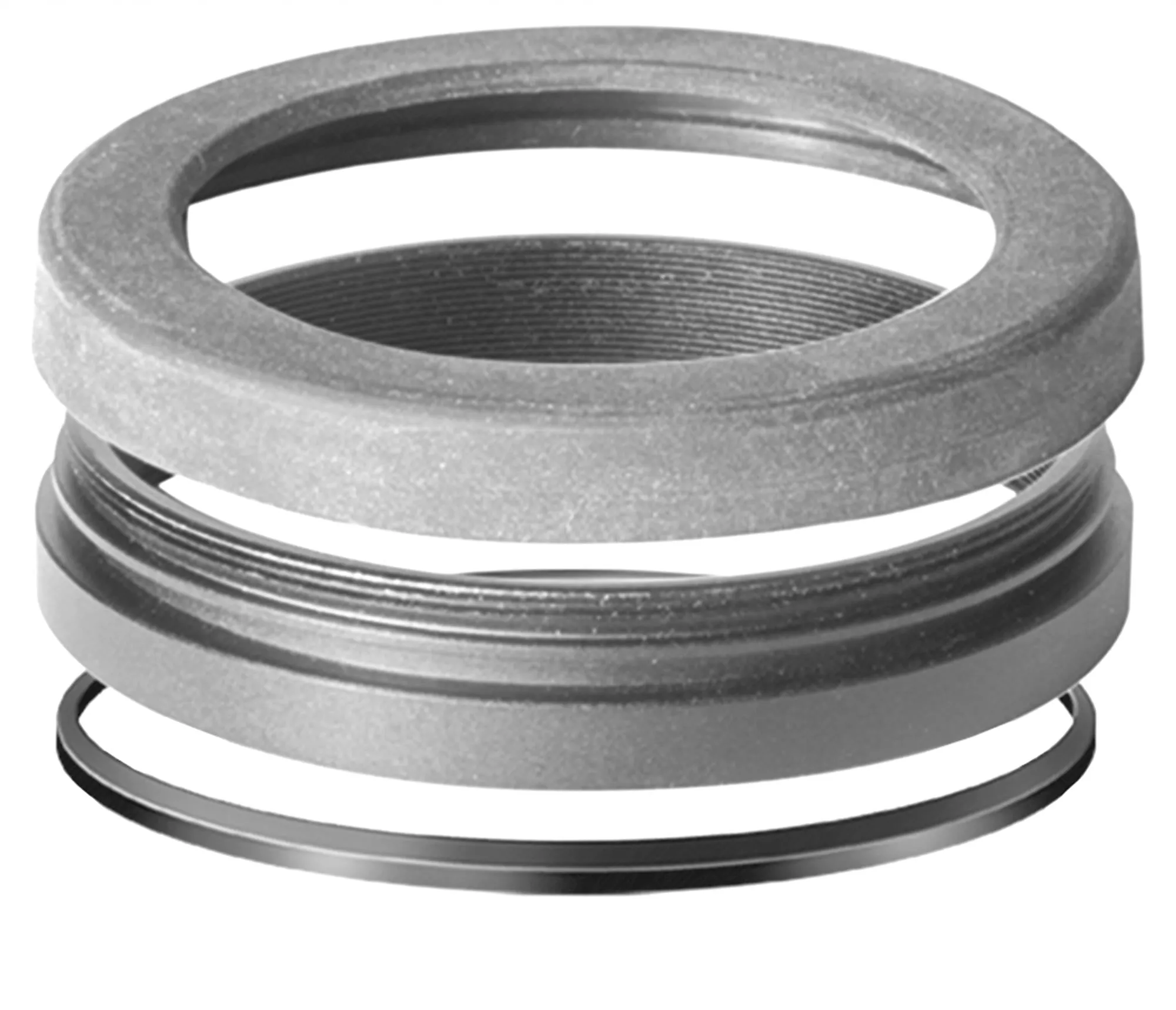

- Extension Ring with 11mm optical path length, with threaded protective flap for the SP54 external thread
- Required for the connection of the DT-rings SP54 / M28 and SP54 / M37
- The Hyperion DT-rings are optimized for the shortest distance between eyepiece lens and digital camera lens. Only in this way is a vignetting image illumination possible
- 2 adjusting rings for SP54 thread are free with the purchase at each Hyperion DT-ring.
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2958090 |
| EAN CODE | 4047825007360 |
| WEIGHT (KG) | 0.015 |
| OPTICAL LENGTH (MM) | 11 |
| USAGE | for the DSLR 2" filter holder and direct connection on all Hyperion 68° eyepieces |
| INNER DIAMETER / CLEAR APERTURE (MM) | 50 |
| OUTER DIAMETER | 57 |
| OUTER CONNECTION (LENS SIDED) | Thread, SP54 |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, SP54 |
| ADAPTABLE TO | DTAdapter II&III and Hyperion eyepieces. Fits also onto Morpheus® 76° eyepieces (in combination with #2408040 and #2958080) |
| COMPATIBLE BRANDS | Baader Planetarium |
| TYPE OF ADAPTER | Extension |
