Features

• NIST Traceable
• Includes 15° lens
• 640 x 480 Resolution
• -40 - 3,632°F Range
• 30 Hz Framerate
• 8x Continuous Zoom
• Touchscreen tools as intuitive as any smartphone
• Simple buttons to access interface with gloved hands
• GPS and Compass embed pointing direction and geo-location
• LEDs to light darker areas and laser pointer to mark locations
• Easy voice, text, and sketch annotations, stored in radiometric images
• FLIR Tools Mobile app links camera to smartphones and tablets for immediate image analysis and sharing from field, plus streaming video and remote control for safer monitoring
• MeterLink transmits FLIR T&M data to the camera, for instant integration into images and reports
• FLIR Tools software for PC and Mac provides extra documentation power and camera firmware updates
• Radiometric recording to memory card
• Rotating optical block points 120° up and down for easier aiming and viewing
• Auto orientation switches onscreen temperature data to portrait or landscape
• Fast auto focus and manual control for precision imaging
• Features Continuous Auto Focus for automatic clarity wherever you aim
• Up to 640 x 480 native resolution
• MSX Enhancement Technology on live video and stored images
• Sensitivity of up to < 0.02°C for outstanding image quality
• Temperature calibrations up to 2,000°C
• Range of interchangeable advanced optics
• Additional batteries and chargers
• Spare cables and SD cards
• Camera pouches and tripod adapters

Accessories (Included)

• Thermal Imaging Camera, MSX Enhancement, 640 x 480 Resolution, -40 - 3,632°F Range, 30 Hz Framerate, 8x Continuous Zoom
• 15° Lens
• SD Memory Card
• 100-260V AC Adaptor/Charger
• Li-Ion Rechargeable Batteries (x2)
• 2-Bay Battery Charger
• Power Supply with Multiple Plugs
• FLIR Tools Software
• USB Cable
• Video Cable
• Bluetooth Headset
• Lens Cap
• Neckstrap
• Hard Carrying Case

Specifications

• Temperature Range: -40 - 3632°F (-40 - 2000°C)
• Thermal Sensitivity (N.E.T.D): < 32°F at 86°F (< .035°C at 30°C)
• Digital Zoom: 8x Continuous
• Focus: Continuous, manual, or automatic (one shot)
• LCD Image Sketch: Draw on stored images right on touchscreen
• Viewfinder: Color viewfinder for viewing images in bright or sunny conditions
• Measurement Presets: Presets for standard measurements
• Profile Measurement Analysis: Shows a live graph of temperatures across a line on the image
• Multi-Spectral Dynamic Imaging (MSX): IR image with enhanced detail presentation
• GPS: Location data automatically added to every image from built-in GPS
• Compass: Indicates direction camera is pointing for target documentation
• Frame Rate: 30 Hz
• Field of View/Minimum Focus Distance/FOV Match: 25° x 19°/.82 ft. (0.25m)/FOV match where digital image FOV adapts to IR lens
• Detector Type - Focal Plane Array (FPA) Uncooled Microbolometer: 640 x 480 pixels
• Spectral Range: 7.5 to 14µm
• Display: Built-in touch-screen 4.3 in. color LCD (800 x 480 pixels)
• Image Modes: Thermal, visual, fused images, P-i-P, MSX (resizable and movable), thumbnail gallery
• Automatic Image Adjustment: Continuous/manual; linear or histogram based; possible to lock max, min, or span temperature
• Manual Image Adjustment: Level/span/max/min
• Image Storage: 1000 radiometric JPEG images (SD card memory)
• Image Annotation: Voice (60 sec); text comments, sketch
• Periodic Image Storage: 7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual)
• Video Lamp: Bright LED
• Laser Classification/Type: Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red)
• Set-Up Controls Mode: selector, color palettes, configure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery
• Measurement Modes: 10 spotmeters, 5 box areas, isotherm, auto hot/cold spot, Delta T
• Measurement Correction: Reflected ambient temperature and emissivity correction
• Video Recording in Camera and Video Streaming: Non-radiometric IR-video recording (MPEG-4 to memory card), Visual and Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB)
• Battery Type: Li-ion
• Operating Time: 2.5 hours, Display shows battery status
• Shock: 25G, IEC 60068-2-29
• Vibration: 2G, IEC 60068-2-6
• Encapsulation; Safety IP54; EN/UL/CSA/PSE 60950-1
• Dimensions: 5.6 in. x 7.7 in. x 3.7 in. (143mm x 196mm x 94mm)
• Weight: 2.87 lbs. (1.3kg), including battery

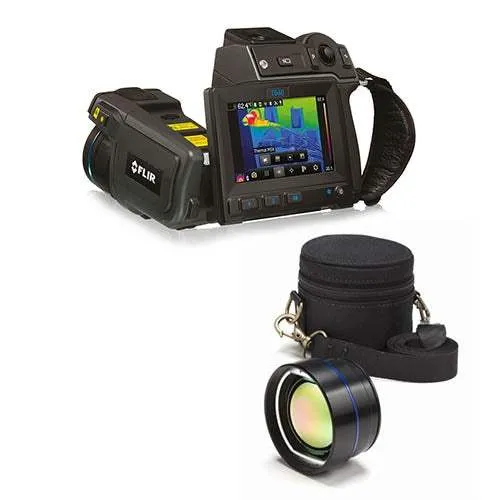

The FLIR T640-15 Thermal Imaging Camera, MSX Enhancement, 15° Lens, 640 x 480 Resolution, -40 - 3,632°F Range, 30 Hz Framerate, 8x Continuous Zoom gives professional thermographers the highest thermal resolution and sensitivity for the best-looking images and most accurate temperature measurements. Coupled with dual 5 megapixel digital cameras, you will get the sharpest visible light and thermal images you need to create the most effective documentation. See the results jump off the screen.
