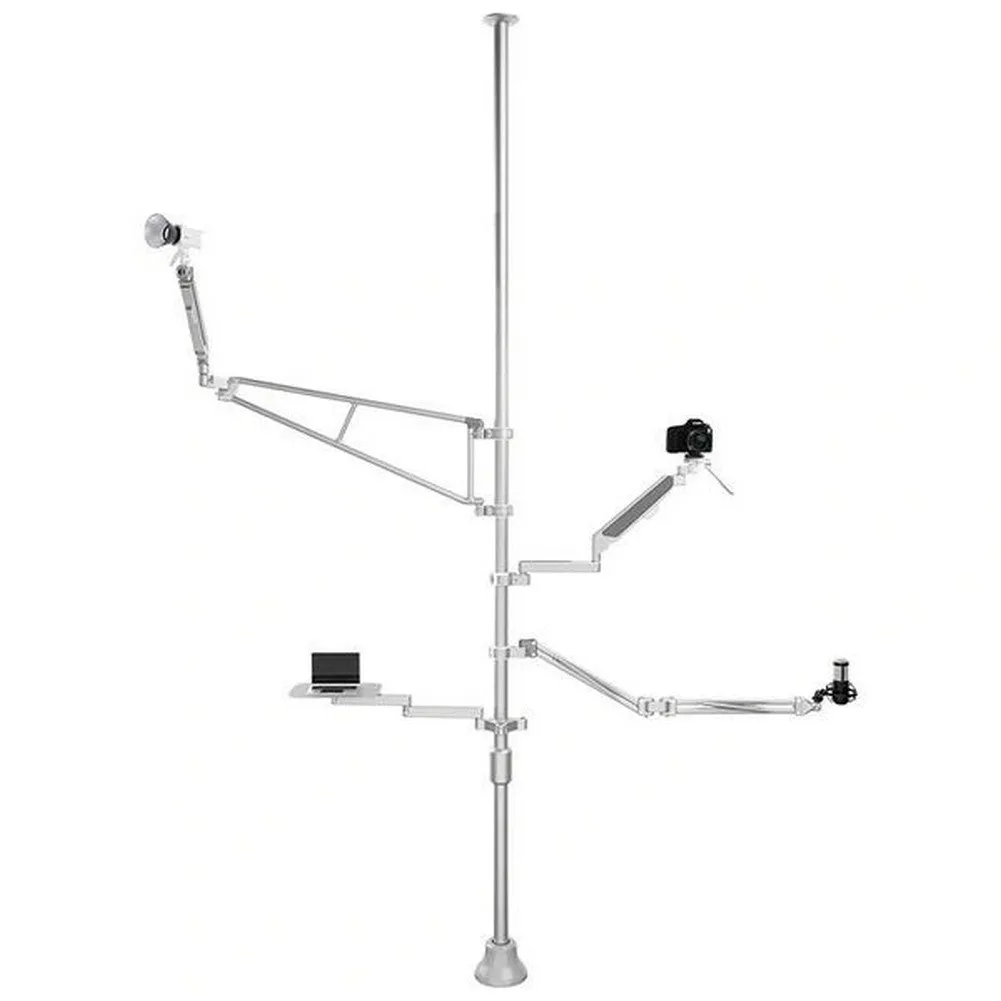

Redefine your home studio with the Ulanzi GearTree Home Studio Setup Kit C. Comprised of a main stand and a variety of arms, the kit reimagines the traditional video studio in a way that allows creators to easily and quickly set up their gear at home, in the office, or in other small spaces. GearTree offers a sleek, space-efficient alternative to the traditional array of bulky tripods and light stands.

Specifications

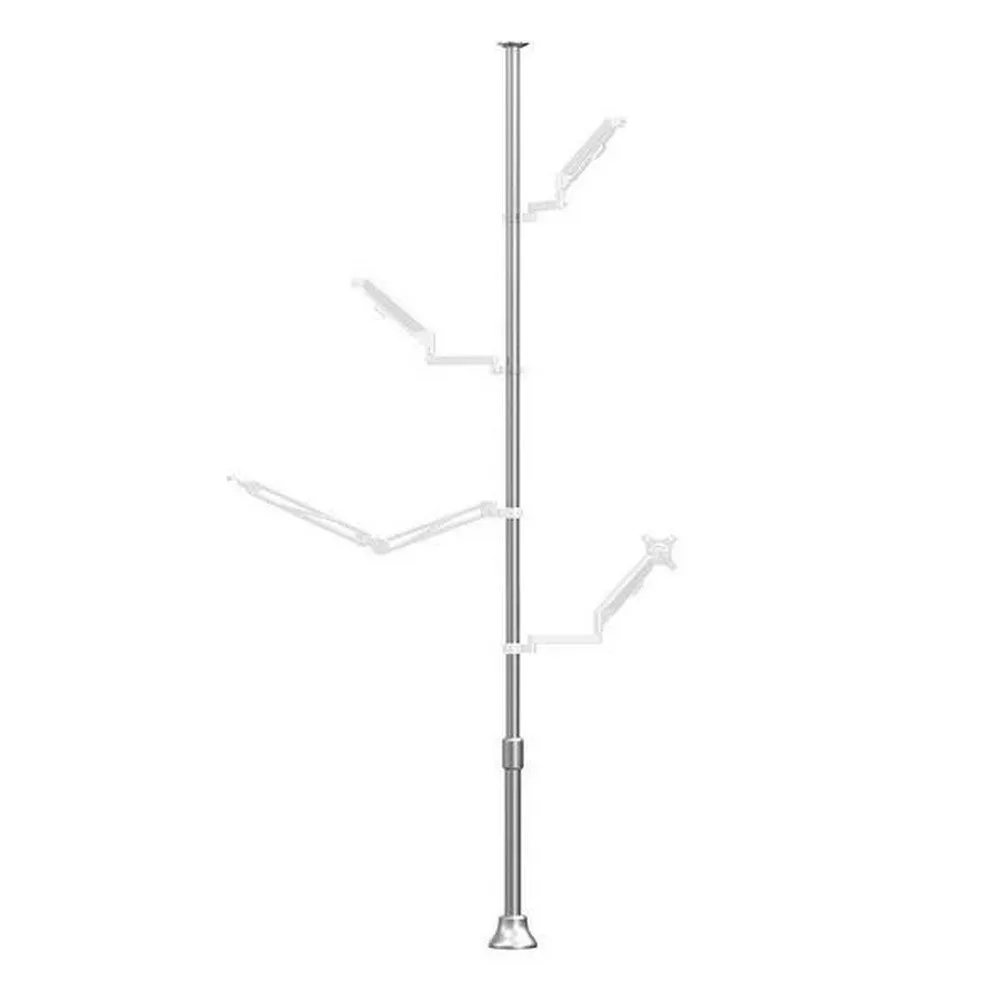

Floor to Celling Rod (2.1~2.6m)

• Weight: 4.31kg
• Diameter: Φ42mm
• Length x Width: 150 x 150mm
• Height Extension: 2.1~2.6m
• Material: Aluminium Alloy
• Maximum Load Capacity: 400kg
• Maximum Torsion Strength: 400Nm

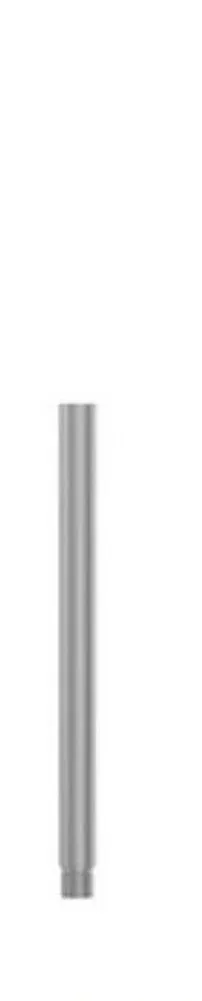

Extension Rod

• Dimension: Φ42 x 560mm
• Extends Rod 0.5m

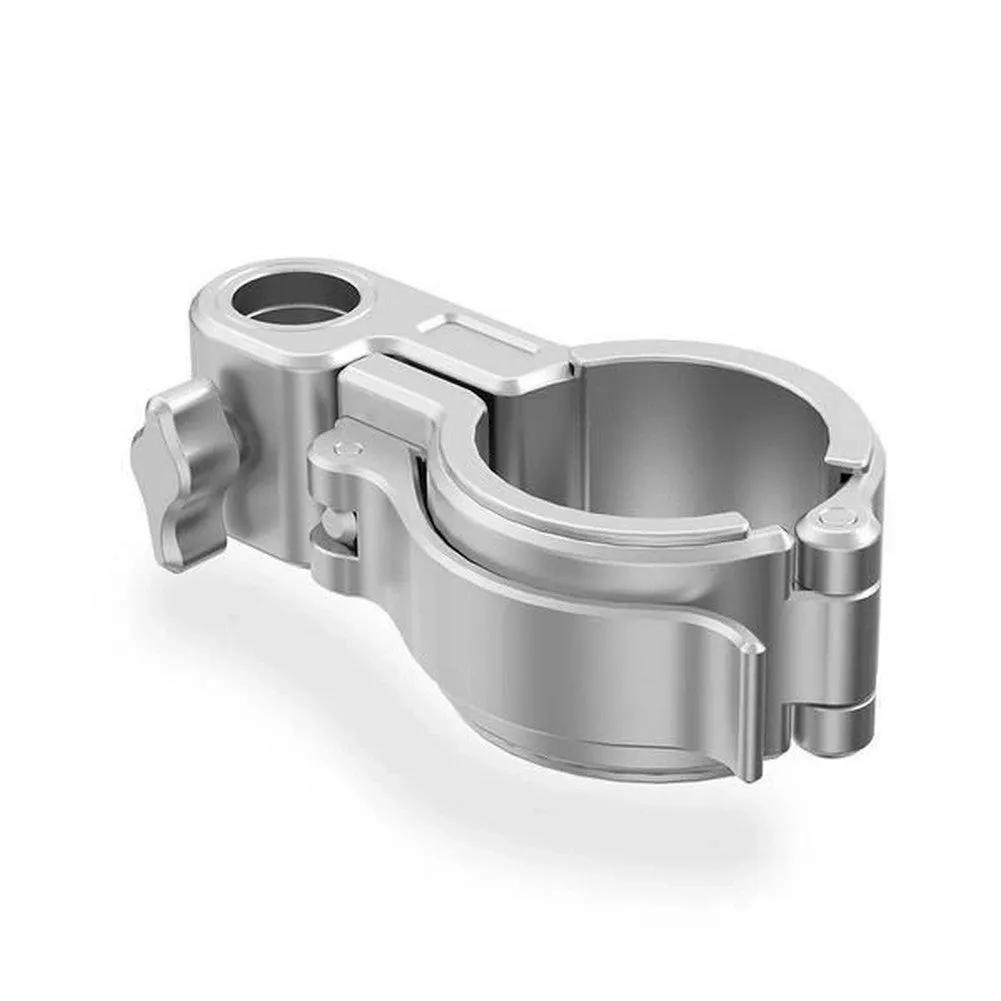

4 x Mount Ring (Single Interface)

• Weight: 2.52kg
• Dimension: 815.5 x 135 x 180mm
• Clamp Range: 8-55mm
• Diameter： Φ42 x 687mm
• Maximum Load Capacity: 40kg

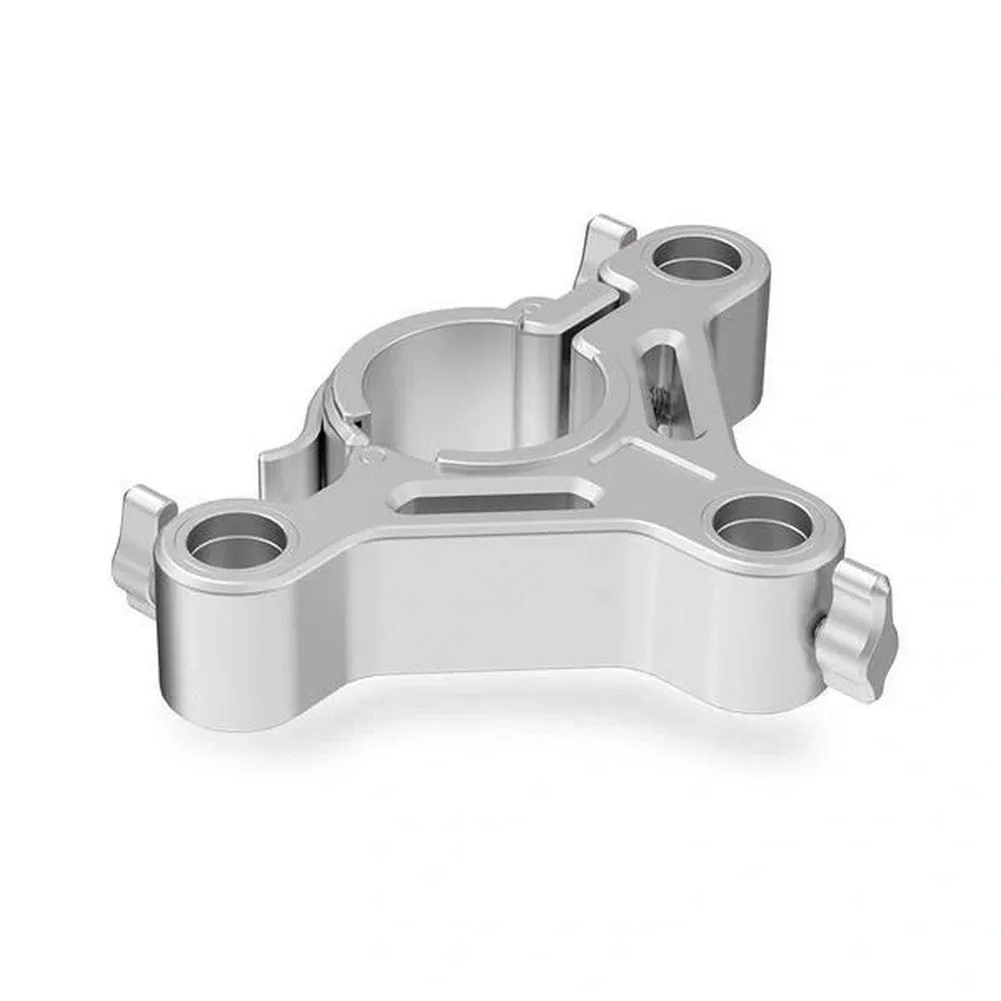

Mount Ring (Triple Interfaces)

• Weight: 335g
• Dimensions: 147 x 117 x 33mm
• Mounting Point Diameter: 15.8±0.5mm
• Mounting Point Depth: 30mm
• Maximum Load Capacity: 50kg
• Compatible with Diameter of Rod: Φ42、Φ40、Φ38mm

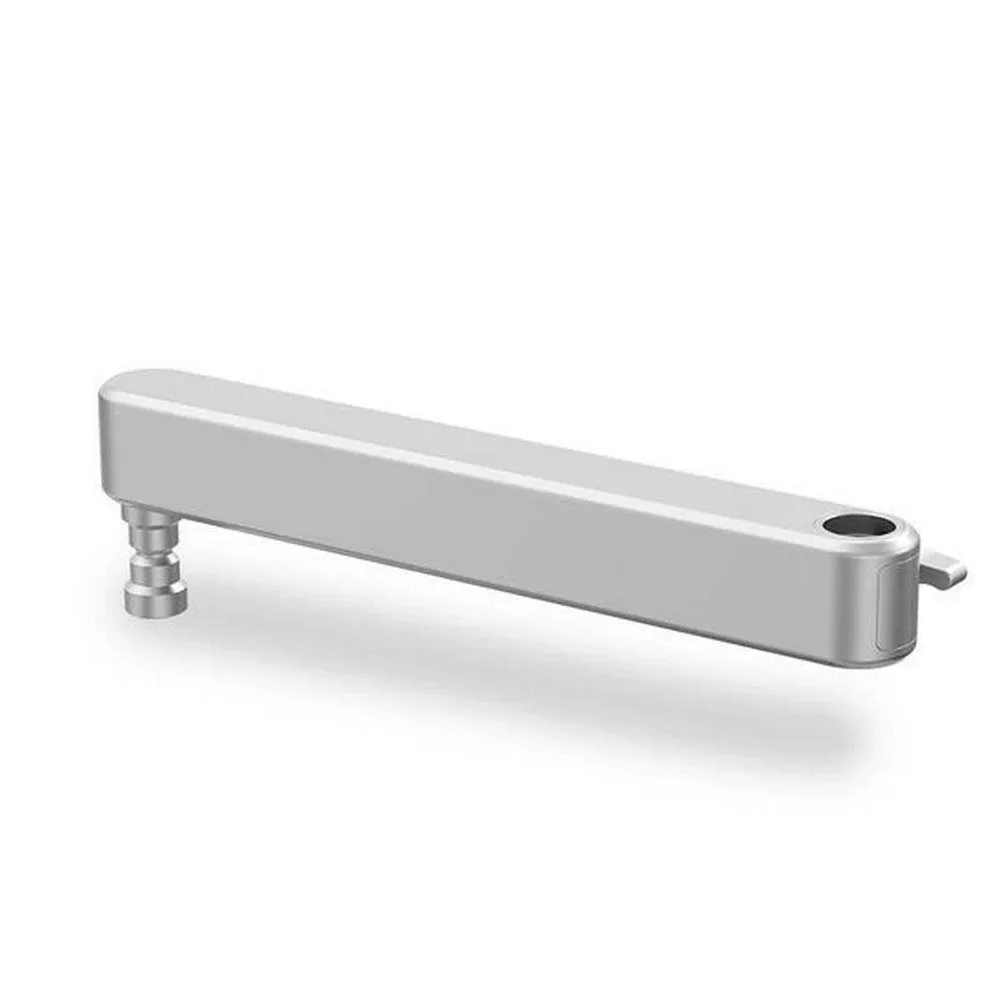

4 x Basic Extension Arm

• Weight: 359g
• Dimension: 227 x 40 x 62mm
• Mounting Point Diameter: 15.8±0.5m
• Mounting Point Depth: 30mm
• Maximum Load Capacity：20kg

Microphone Boom Arm

• Weight：1.03kg
• Dimension (closed)：471 x 88 x 58mm
• Full Length: 900mm
• Connector Option: 1/4'' screw x 1, 3/8'' Screw x 1, 5/8'' Screw x 1
• Female Cold Shoe x 1
• Load Capacity: 0.5~1.6kg
• Ballhead on Arm

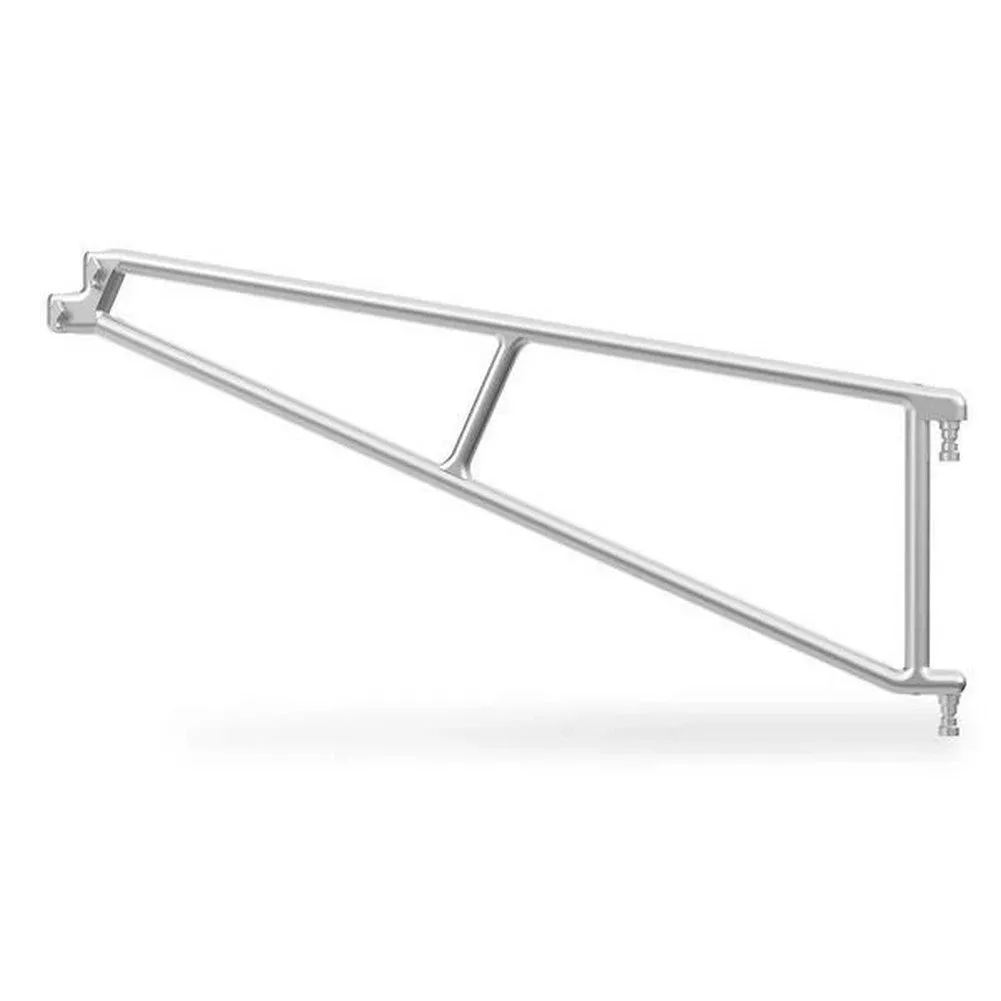

Heavy Duty Triangle Extension Arm

• Weight: 1.22kg
• Dimensions: 725 x 380 x 40mm
• Mounting Point Diameter: 15.8±0.5mm
• Mounting Point Depth: 30mm
• Maximum Load Capacity: 30kg
• Compatible with Large and Heavy Lights

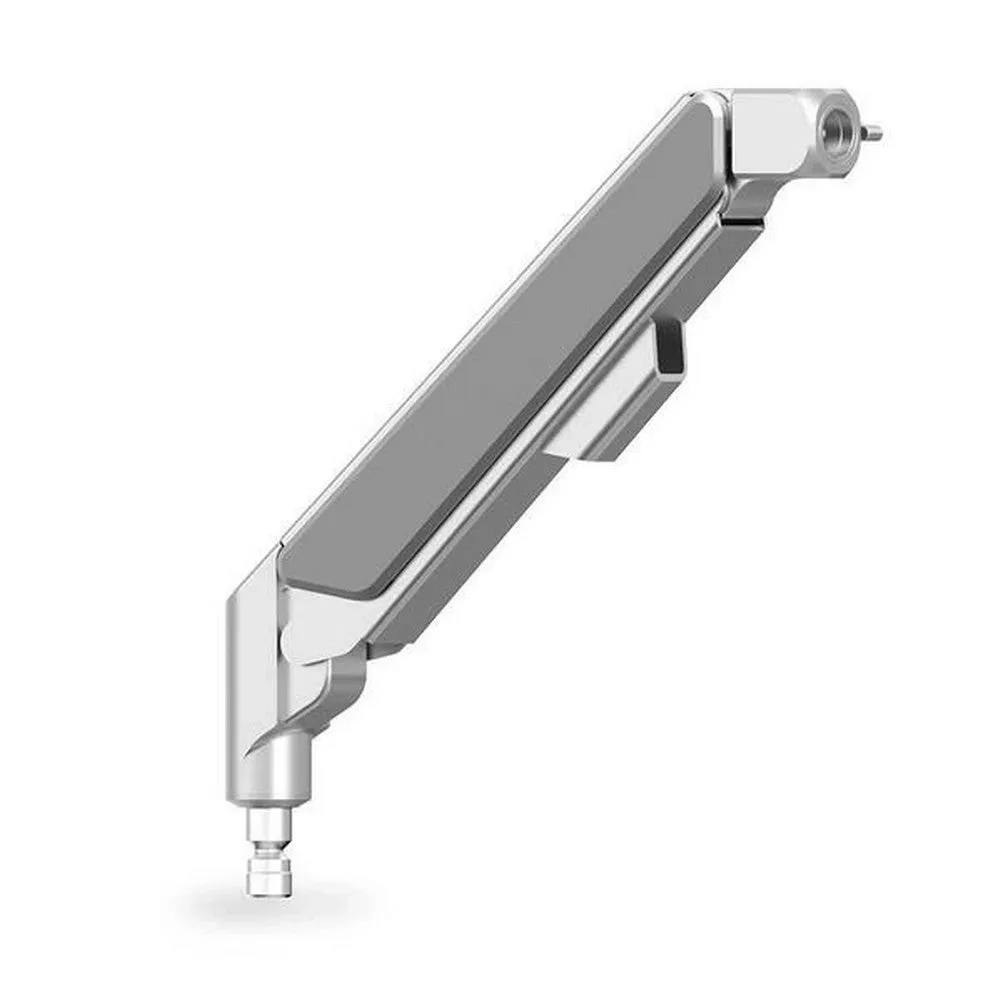

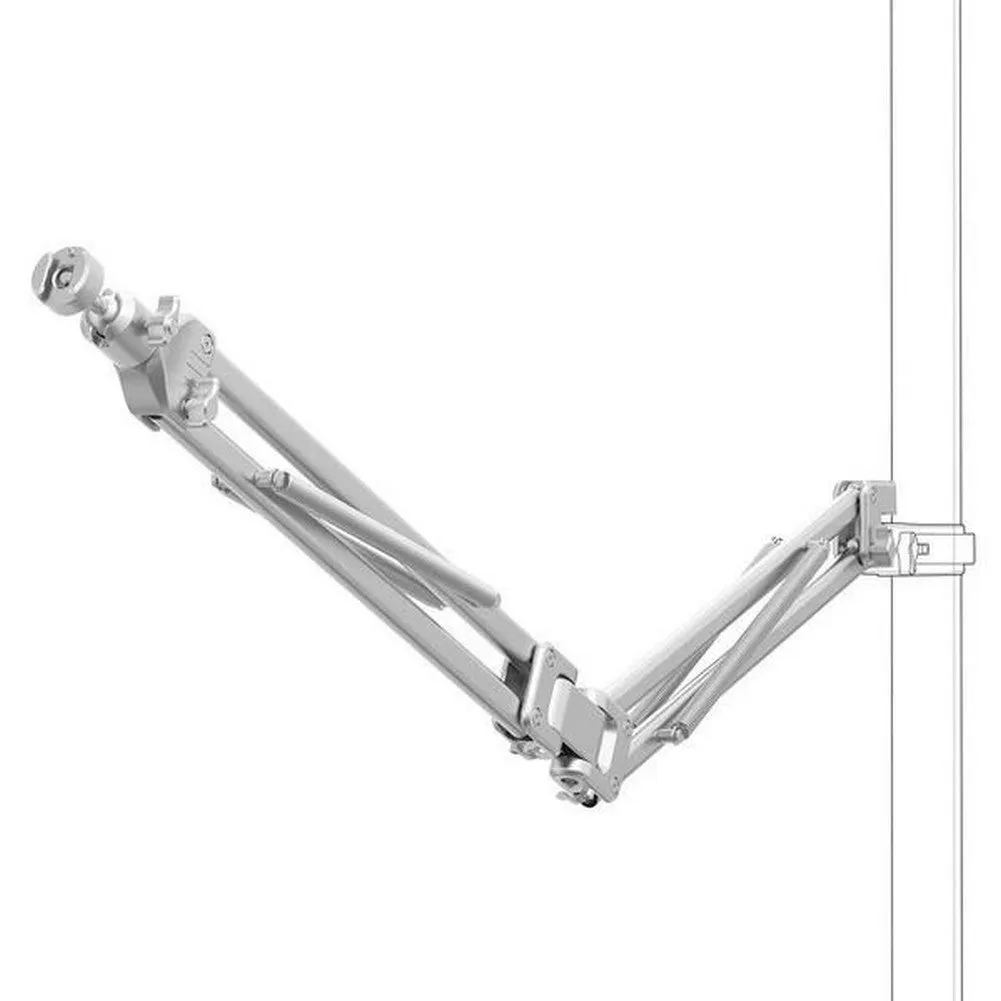

2 x Damping Arm

• Weight: 1.02kg
• Dimension：257 x 44 x 269mm
• Mounting Point Diameter: 15.8±0.5mm
• Mounting Point Depth: about 30mm
• Load Capacity: 2~9kg
• Flexible Space: 316mm up and down

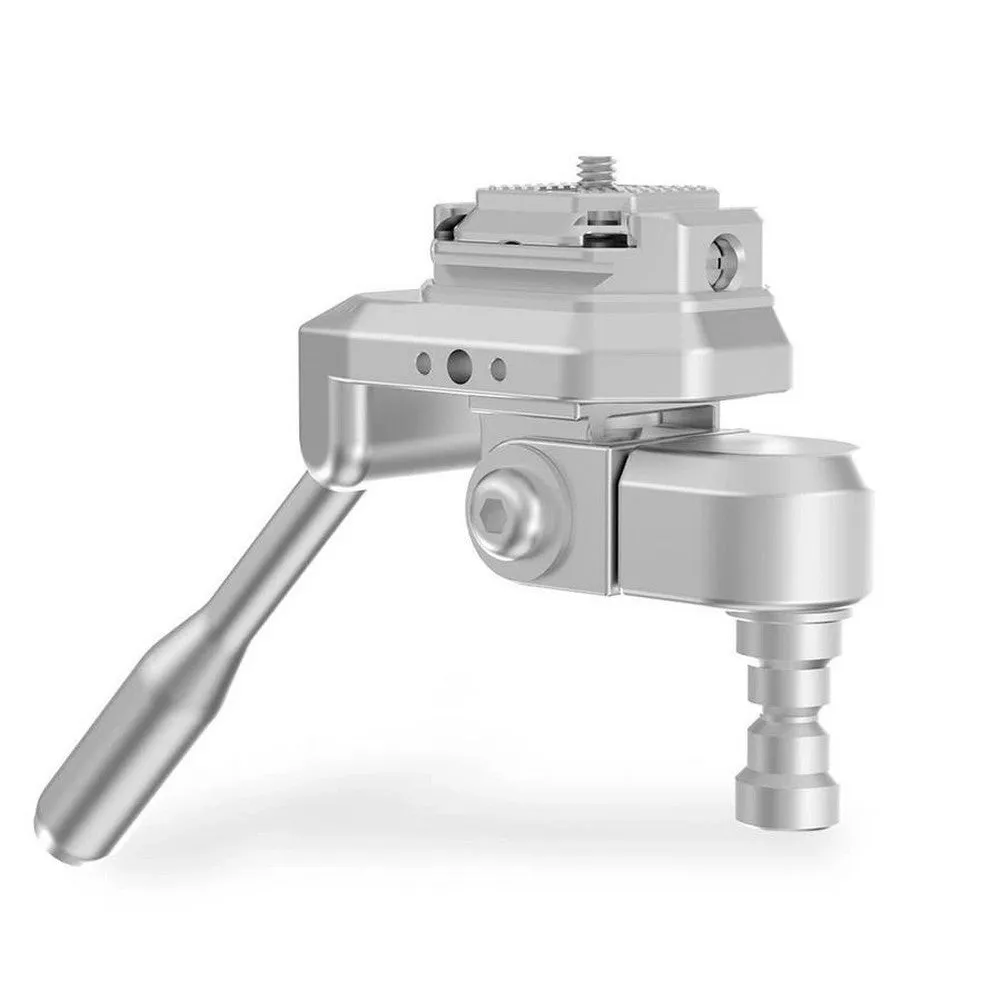

Panoramic Ball Head

• Weight: 350g
• Dimension: 66 x 49 x123mm
• Maximum Load Capacity: 9kg
• Three way pan/Tilt Ballhead
• Compatible with F38 QR Plate and F22 Camera Cage

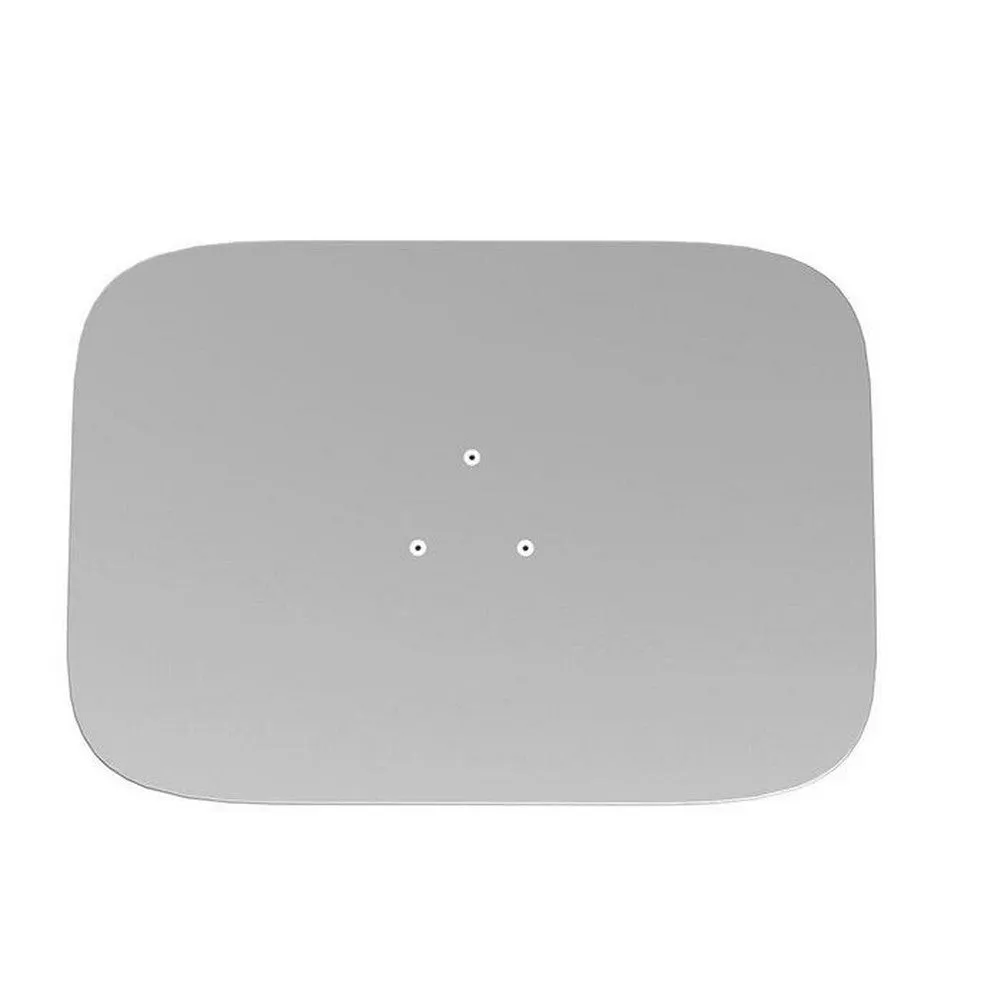

Aluminium Table Top (Rectangular)

• Weight: 1.32kg
• Dimension: 390 x 280 x 48mm
• Maximum Load Capacity: 20kg

15.8mm Stud to 1/4'' & 3/8'' Male Thread

• Weight: 44g
• Dimension: Φ19 x 62mm
• Capacity Loading: 50Kgs
• 1/4'' & 3/8 for options

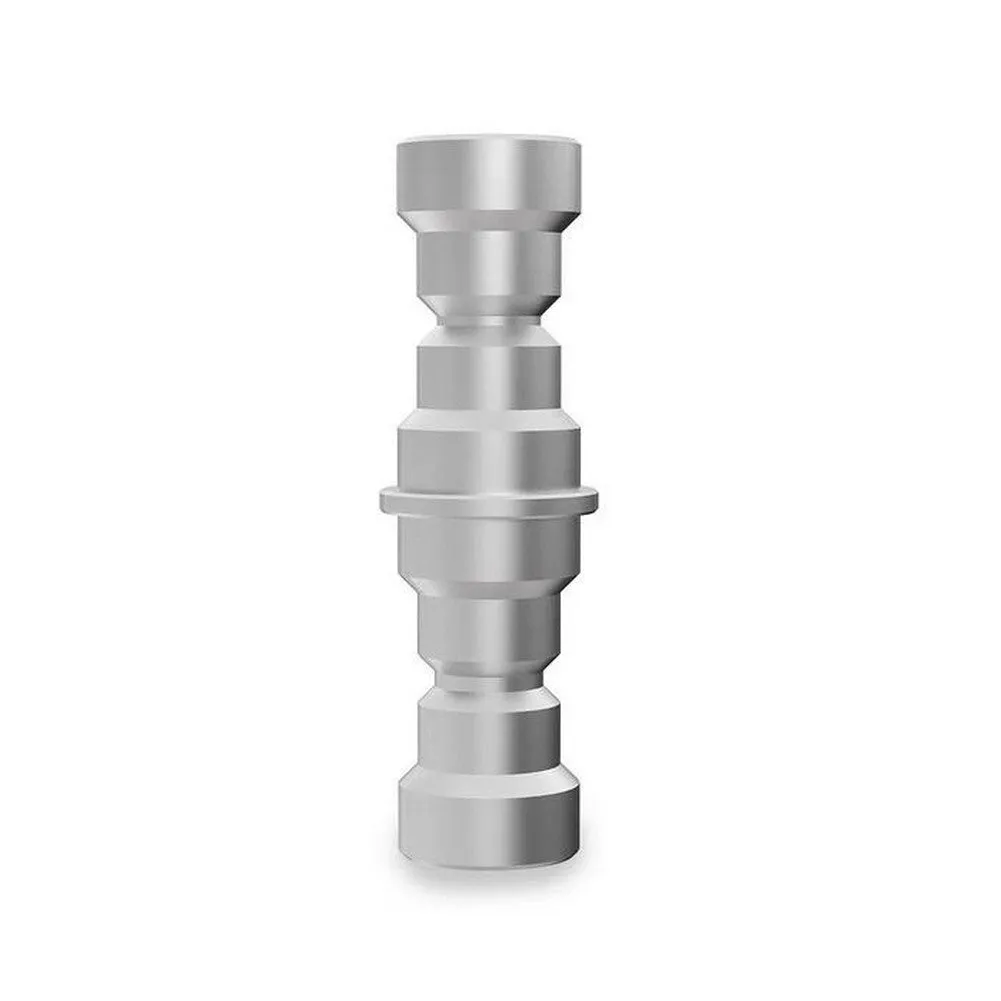

15.8mm Lighting Stud

• Weight: 76g
• Dimension: Φ19 x 62mm
• Compatible with Professional Lights
• Load Capacity: 50Kgs

What's Included

1x Geartree Home Studio Setup Kit - C
