Leica Lino L2P5-1 Laser Level Rugged pack & Lion battery pack
Product Overview

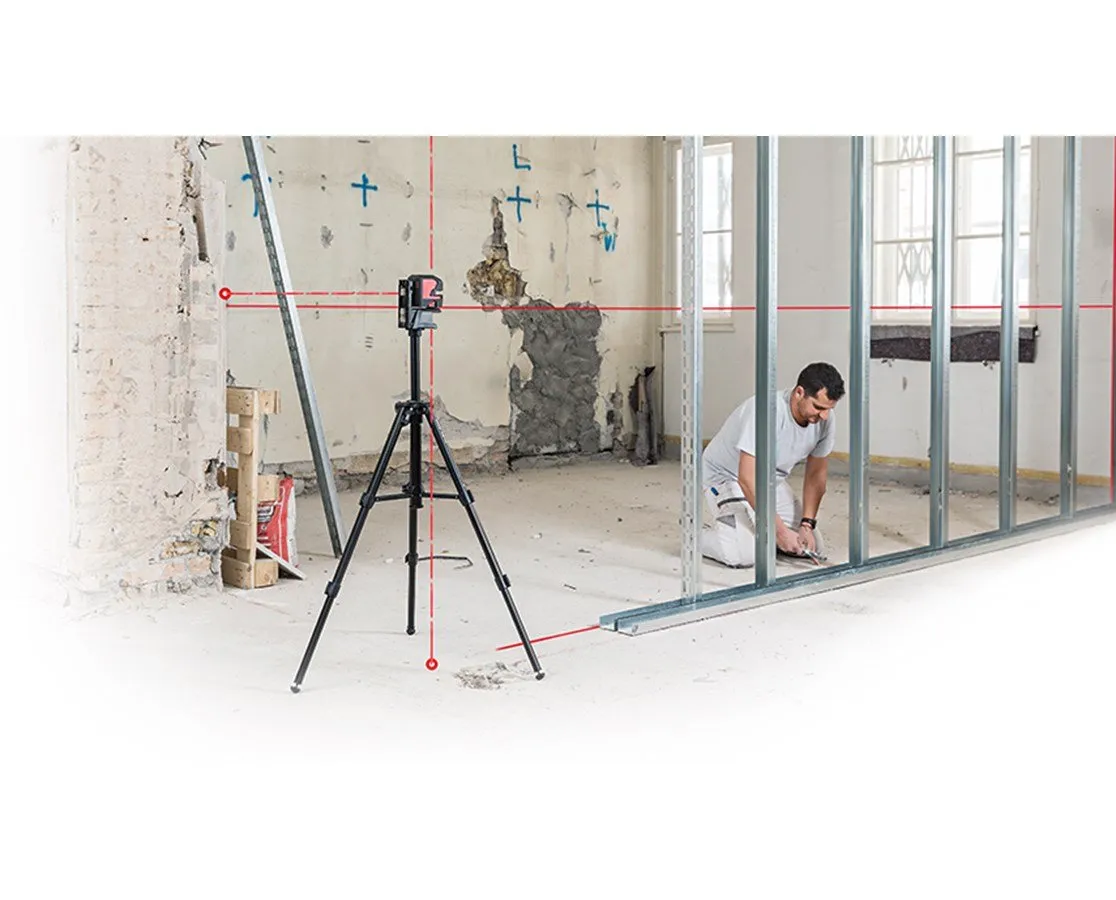

The Leica Lino L2P5 Point and Line Laser is an all-in-one cross line and point laser tool ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection. It features optics that enable it to project very bright and clearly visible laser lines and dots. Its self-leveling capability allows it to automatically adjust its positioning when slightly out of level. This device is designed to fit special mounts for quick and easy positioning with absolute precision.
Depending on the lighting condition, it can have a working range of up to 25 meters. With the use of a laser receiver, the working range extends up to 80 meters. Its self-leveling accuracy is ± 0.2 mm with a range of ± 4 degrees and a self-leveling time of fewer than three seconds. It projects two laser lines and four laser dots at the directions vertical, horizontal, up, down, right, and left. This unit comes with a Twist 360 mount, Li-Ion battery, charger, alkaline battery tray, target plate, Quickstart, Calibration Certificate Blue, and a case.
This point and line laser are made of high-grade fiberglass-reinforced materials which makes it perfect for outdoor and construction use. The optics are protected by a high-grade aluminium frame and impact-absorbing rubber components. It is also dust and water resistant with an IP 54 protection.
Features
- Projects very bright laser
- Self-leveling
- Working range: 25m
- Self-leveling accuracy: ± 0.2mm
- Self-leveling range: ± 4°
- High-grade fiberglass-reinforced materials
- Dust and water resistant
- IP 54 protection
- Includes mounts and other accessories
- Compatible with Twist 360 mount
- Includes a carrying case

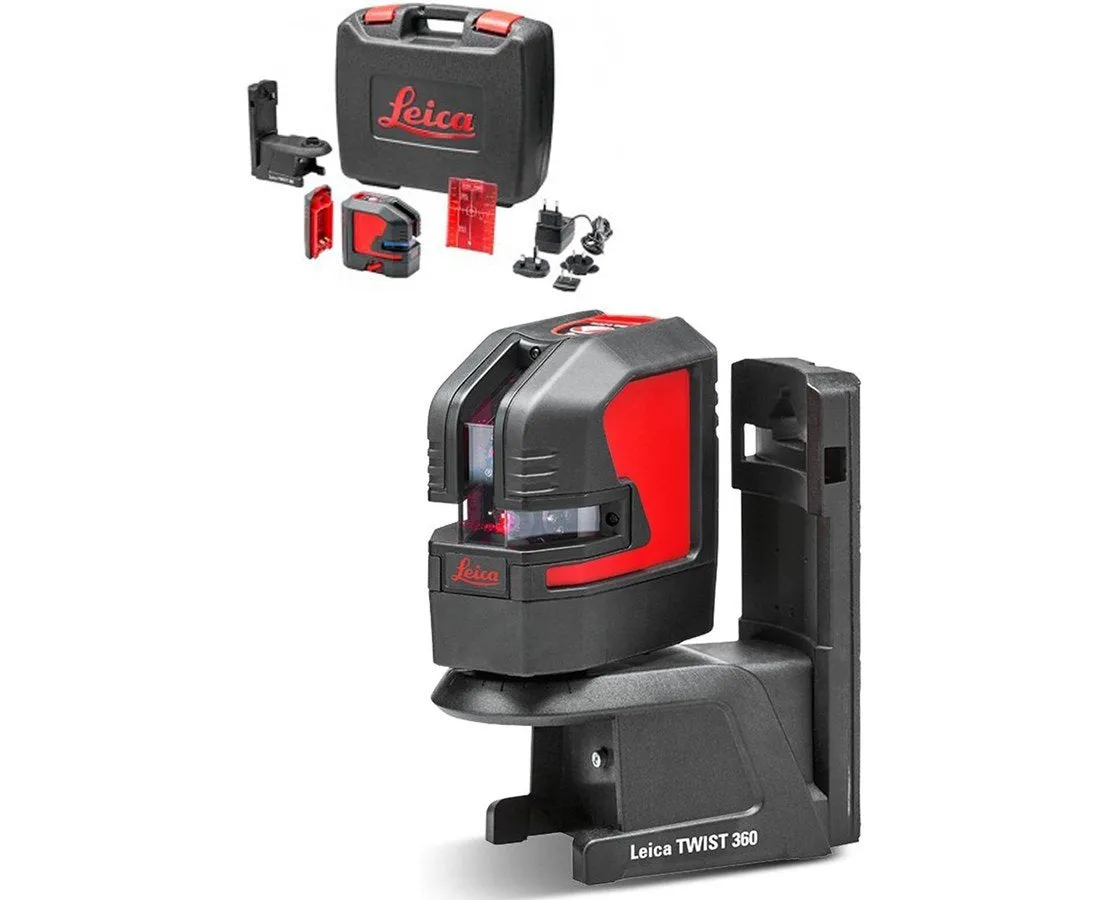

Includes
- Leica Lino L2P5 Point and Line Laser 864431
- Target Plate
- Twist 360 Mount
- Li-Ion Battery
- Charger
- Alkaline Battery Tray
- Case
Specifications
| General | |
| Weight | 1.2 lbs |
| Laser Type | 635 nm |
| Dimensions | 4.45" x 2.4" x 4" |
| Laser Class | 2 |
| Measuring Capabilities | |
| Leveling Accuracy | ± 0.2 mm |
| Working Range | 25 m |
| Vertical Accuracy | ± 0.2 mm |
| Self-Leveling Range | ± 4° |
| Range with Receiver | 80 m |
| Number of Points | 4 |
| Number of Lines (Planes) | 2 |

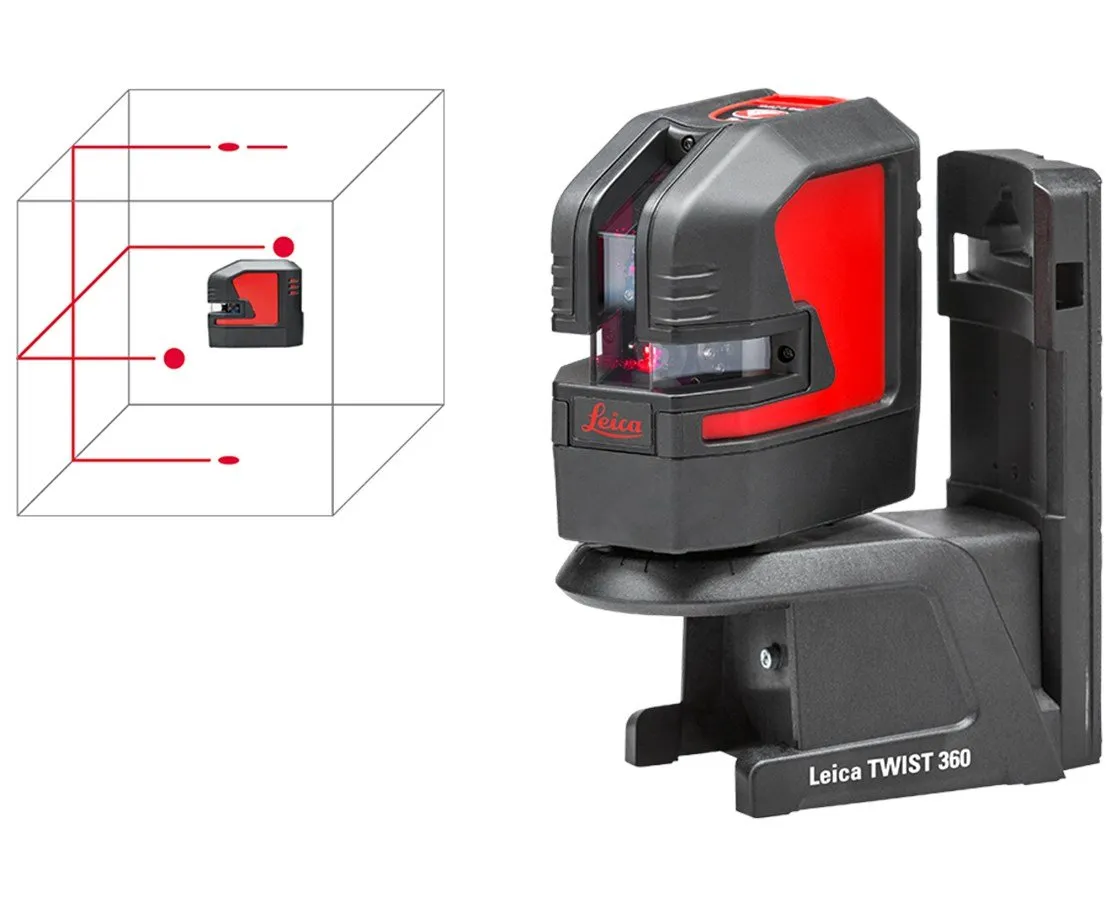

| Beam Direction | Vertical, horizontal, up, down, right, left |
| Horizontal Accuracy | ± 0.2 mm |
| Plumb Accuracy | ± 0.2 mm |
| Battery/Power | |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -25 to 70°C (-13 to 158°F) |
| Operating Time | up to 44 hrs |
| Power Source | Li-Ion rechargeable |
| Applications | |
| Transferring Points from Floor to Ceiling | Yes |
| Installing Windows and Partition Walls | Yes |
| Transferring Points from Wall to Wall | Yes |
| Installing Drop Ceilings and Lights | Yes |
| Flooring and Tile Layout | Yes |
| Ceiling Joist and Rafter Alignment | Yes |
| Diagonals and Footings for Patios | Yes |
| Stud Plumbing and Alignment | Yes |
| Installing Plumbing Pipes and Conduit | Yes |
| Functions | |
| Plumbing Up and Down | Yes |
| Setting out Right Angles | Yes |
| Horizontal Leveling | Yes |
| Vertical Aligning | Yes |
| Vertical and Horizontal Aligning | Yes |
| Aligning at an Angle | Yes |
| Features | |
| Tripod Thread | 1/4" |
| Environmental Class | IP54 |
| Self-Leveling | Yes |
