Leica Lino L2P5G-1 Crossline & Point Laser Level with Lion battery, TWIST 360 & UAL mount
Product Overview
The Leica Lino L2P5G Green Point and Line Laser is a construction tool that is both a cross-line and a point laser tool. It features a green laser beam that is four times brighter than a red laser and is much visible to the naked eye, making it great for bright environments and large rooms. The optics of this device enable it to project very bright and clearly visible laser lines and dots. It has a wide working range and automatically adjusts its positioning when slightly out of level.
This self-leveling laser can work on a range of up to 35 meters, depending on the lighting condition and the range extends to 80 meters with the use of a laser receiver. The device projects two laser lines and four laser dots at the directions vertical, horizontal, up, down, right, and left. Its self-leveling accuracy is ± 0.2 mm with a range of ± 4 degrees and a self-leveling time of fewer than three seconds.
The Lino L2P5G’s optics are protected by a high-grade aluminum frame and impact-absorbing rubber components. It is made of high-grade fiberglass-reinforced materials which makes it perfect for outdoor and construction use. It has a protection rating of IP 54 for dust and water splash.
Features
- Green laser beams
- Projects very bright laser
- Self-leveling
- Working range: 35m
- Range with a receiver: 80m
- Self-leveling accuracy: ± 0.2mm
- Self-leveling range: ± 4°
- High-grade fiberglass-reinforced materials
- Dust and water resistant
- IP 54 protection
- Includes mounts and other accessories
- Compatible with Twist 360 mount
- Includes a carrying case

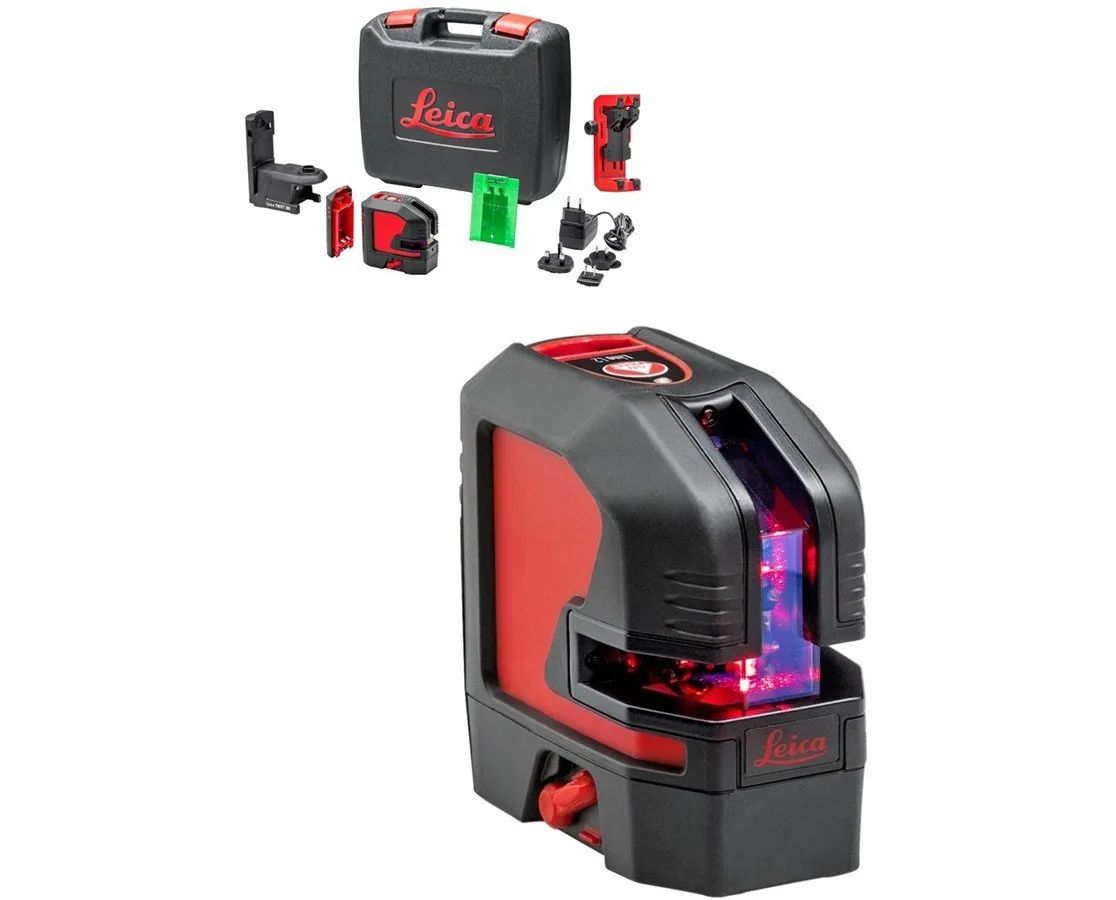

Includes
- Leica Lino L2P5G Green Point and Line Laser 864435
- UAL 130 Adapter
- Target Plate

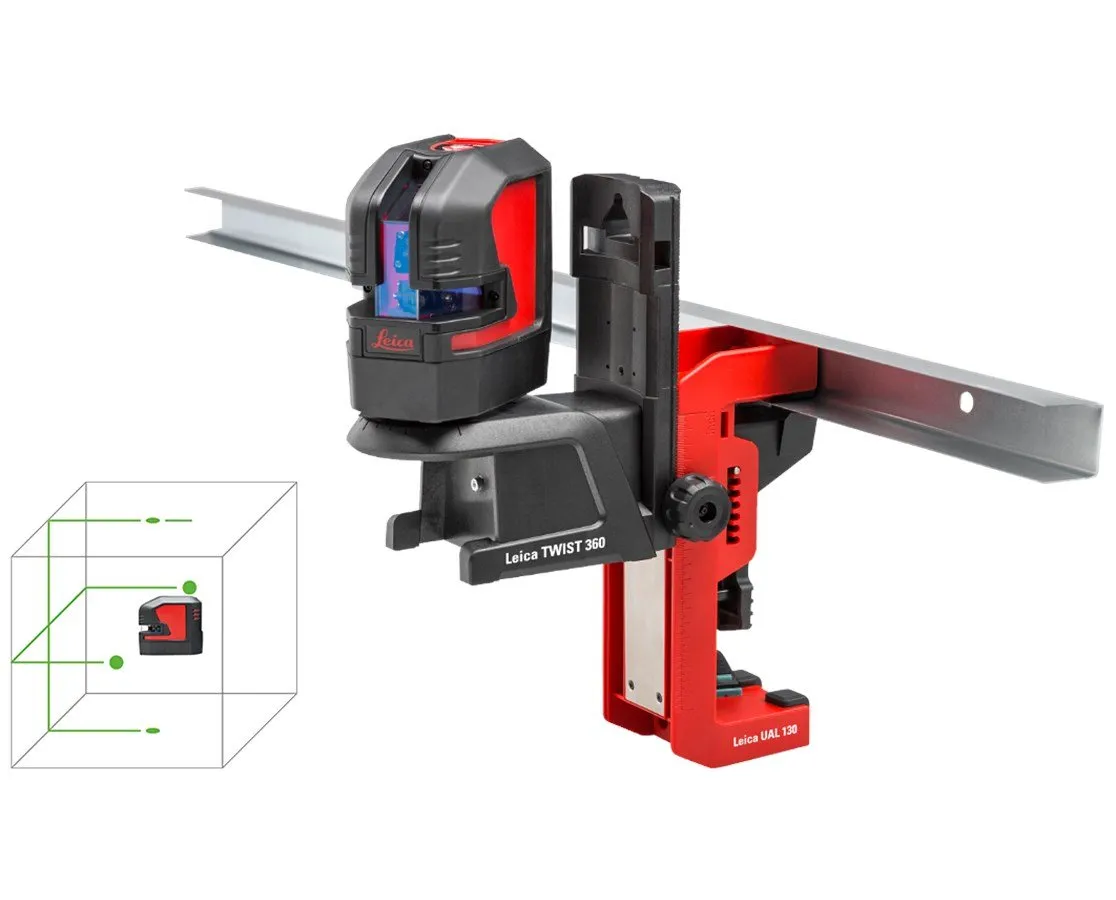

- Twist 360 Mount
- Li-Ion Battery
- Charger
- Alkaline Battery Tray
- Case
Specifications
| General | |
| Weight | 1.2 lbs |
| Laser Type | 525 nm |
| Dimensions | 4.45" x 2.4" x 4" |
| Laser Class | 2 |
| Measuring Capabilities | |
| Leveling Accuracy | ± 0.2 mm |
| Working Range | 35 m |
| Vertical Accuracy | ± 0.2 mm |
| Self-Leveling Range | ± 4° |
| Range with Receiver | 80 m |
| Number of Points | 4 |
| Number of Lines (Planes) | 2 |
| Beam Direction | Vertical, horizontal, up, down, right, left |
| Horizontal Accuracy | ± 0.2 mm |
| Plumb Accuracy | ± 0.2 mm |
| Battery/Power | |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -25 to 70°C (-13 to 158°F) |
| Operating Time | up to 28 hrs |
| Power Source | Li-Ion rechargeable |
| Applications | |
| Transferring Points from Floor to Ceiling | Yes |
| Installing Windows and Partition Walls | Yes |
| Transferring Points from Wall to Wall | Yes |
| Installing Drop Ceilings and Lights | Yes |
| Flooring and Tile Layout | Yes |
| Ceiling Joist and Rafter Alignment | Yes |
| Diagonals and Footings for Patios | Yes |
| Stud Plumbing and Alignment | Yes |
| Installing Plumbing Pipes and Conduit | Yes |
| Functions | |
| Plumbing Up and Down | Yes |
| Setting out Right Angles | Yes |
| Horizontal Leveling | Yes |
| Vertical Aligning | Yes |
| Vertical and Horizontal Aligning | Yes |
| Aligning at an Angle | Yes |
| Features | |
| Tripod Thread | 1/4" |
| Environmental Class | IP54 |
| Self-Leveling | Yes |
