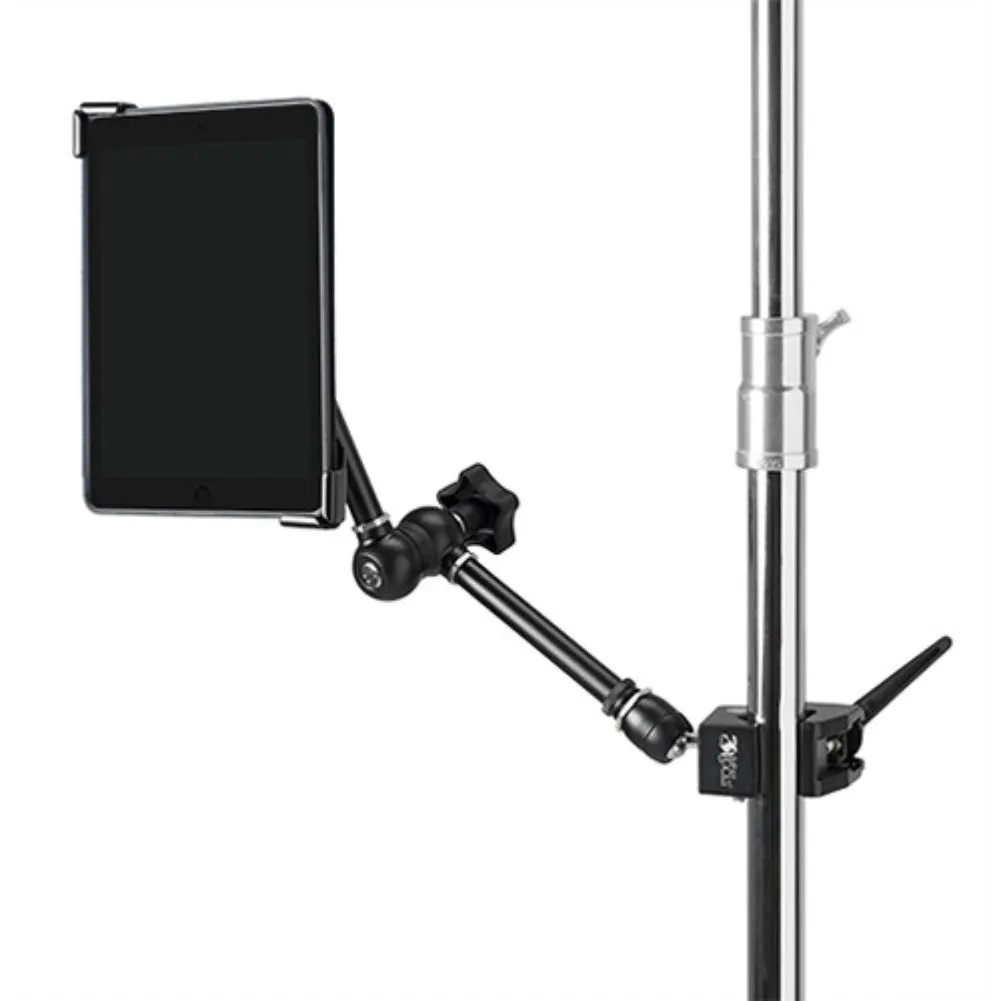

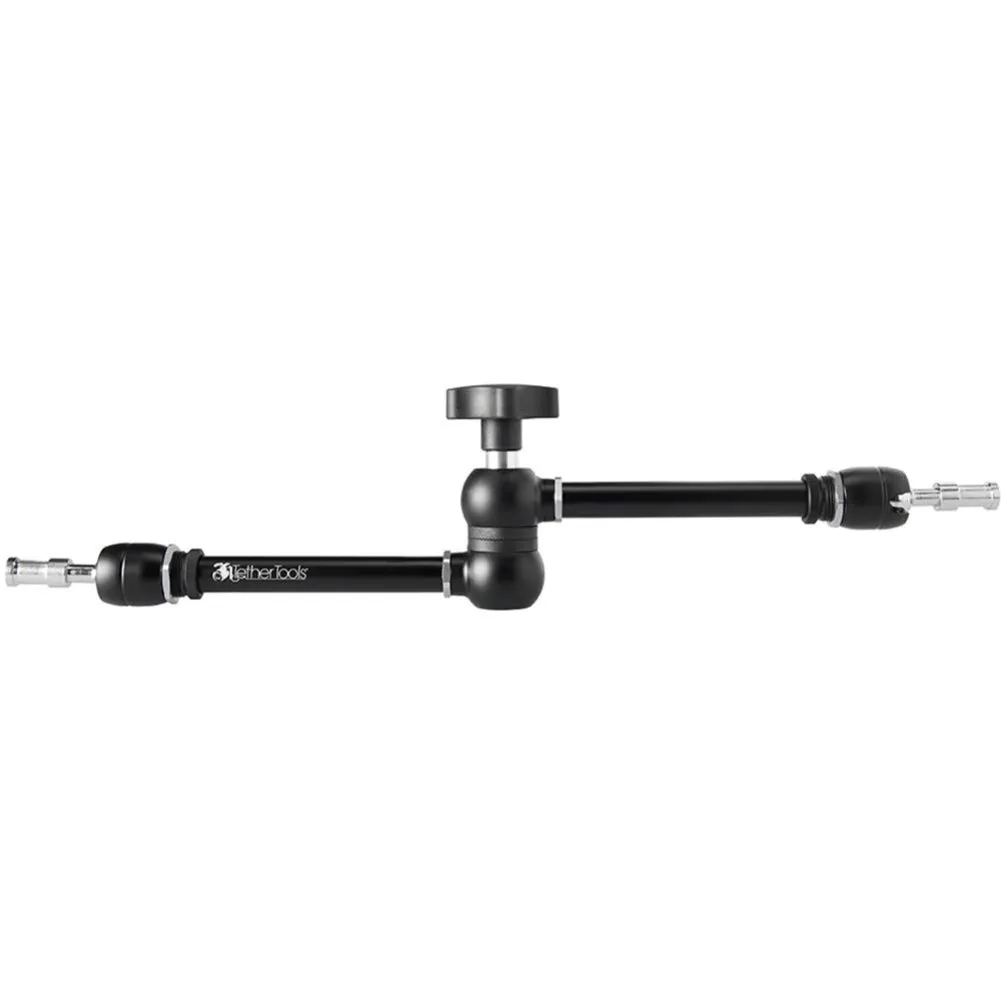

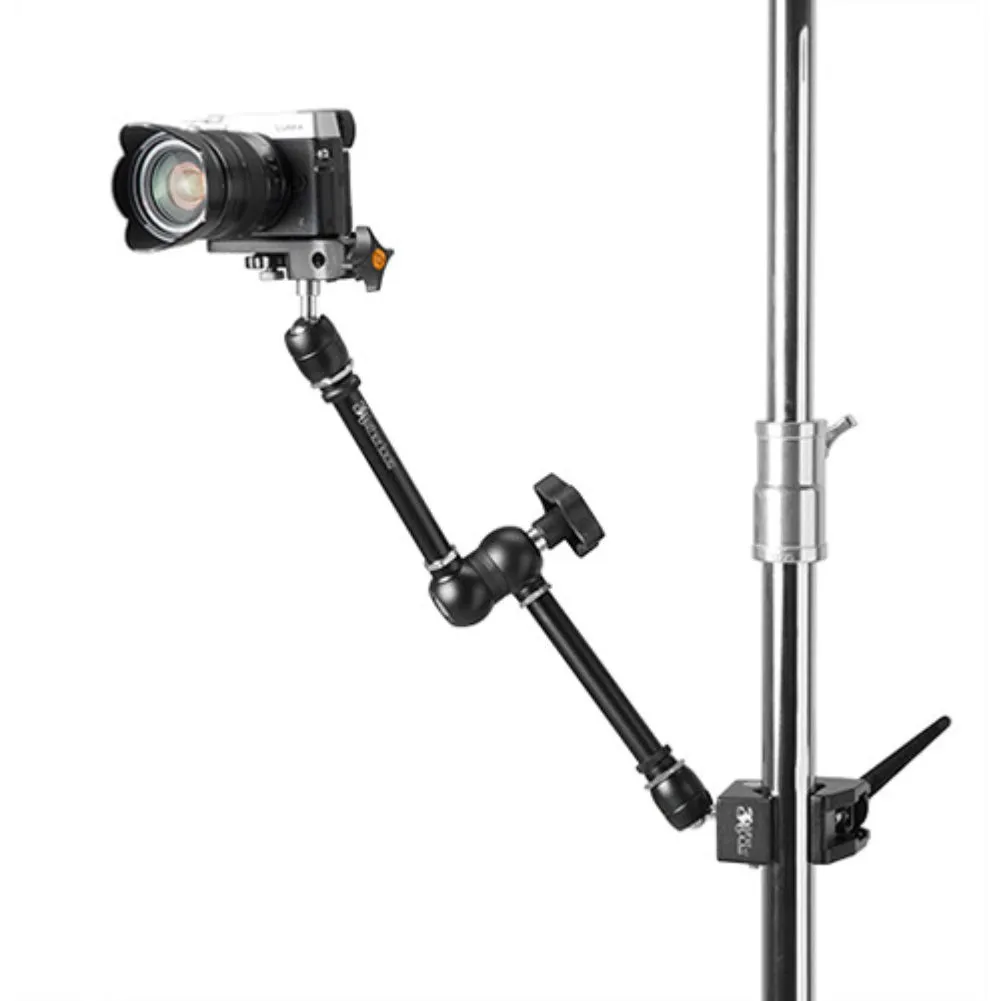

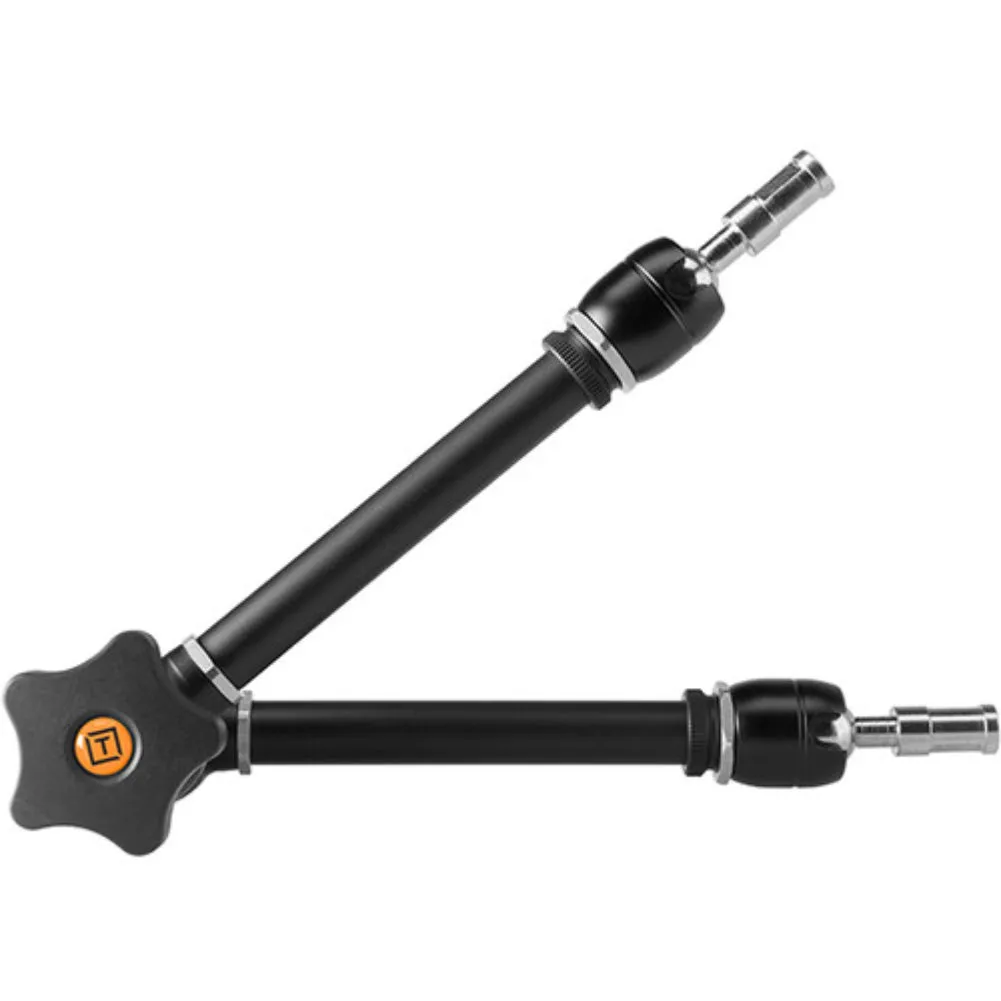

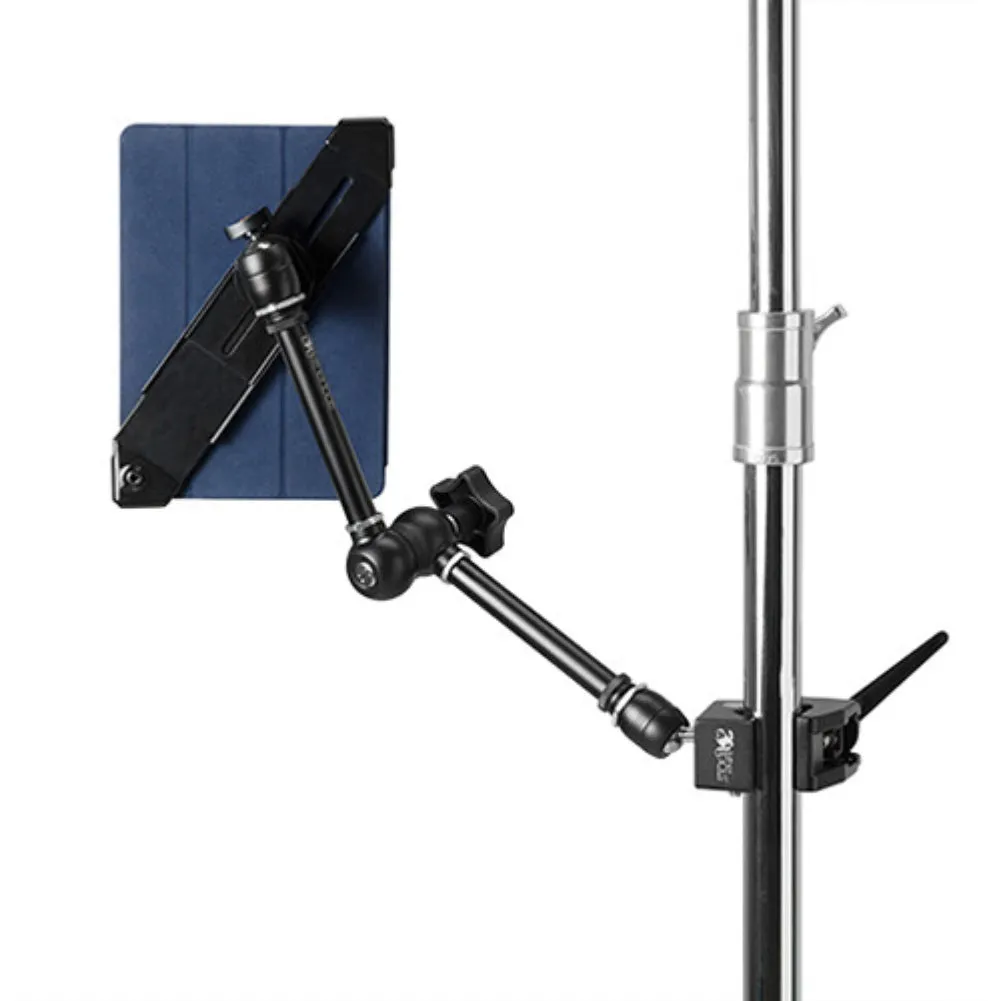

This is the Rock Solid Master Articulating Arm from Tether Tools. It is a fully adjustable arm designed for positioning a tablet, small monitors, cameras, lights, flashes, and many other accessories in the optimal position.
The dual 5/8" studs integrate with numerous standard photo and film clamps, platforms, and tools used to mount equipment, including Tether Table Aero, Connect iPad Bracket, Rock Solid Camera Platform, and Local Vu Monitor Mounts. The Rock Solid Arm is compact in design, simple to maneuver and features 21" of full extension. It features three articulating joints and can easily mount compatible accessories to any desired location and angle. When the center knob is loosened, all three articulation points loosen for easy maneuverability. When the perfect position is achieved, simply tighten the knob and everything locks securely.

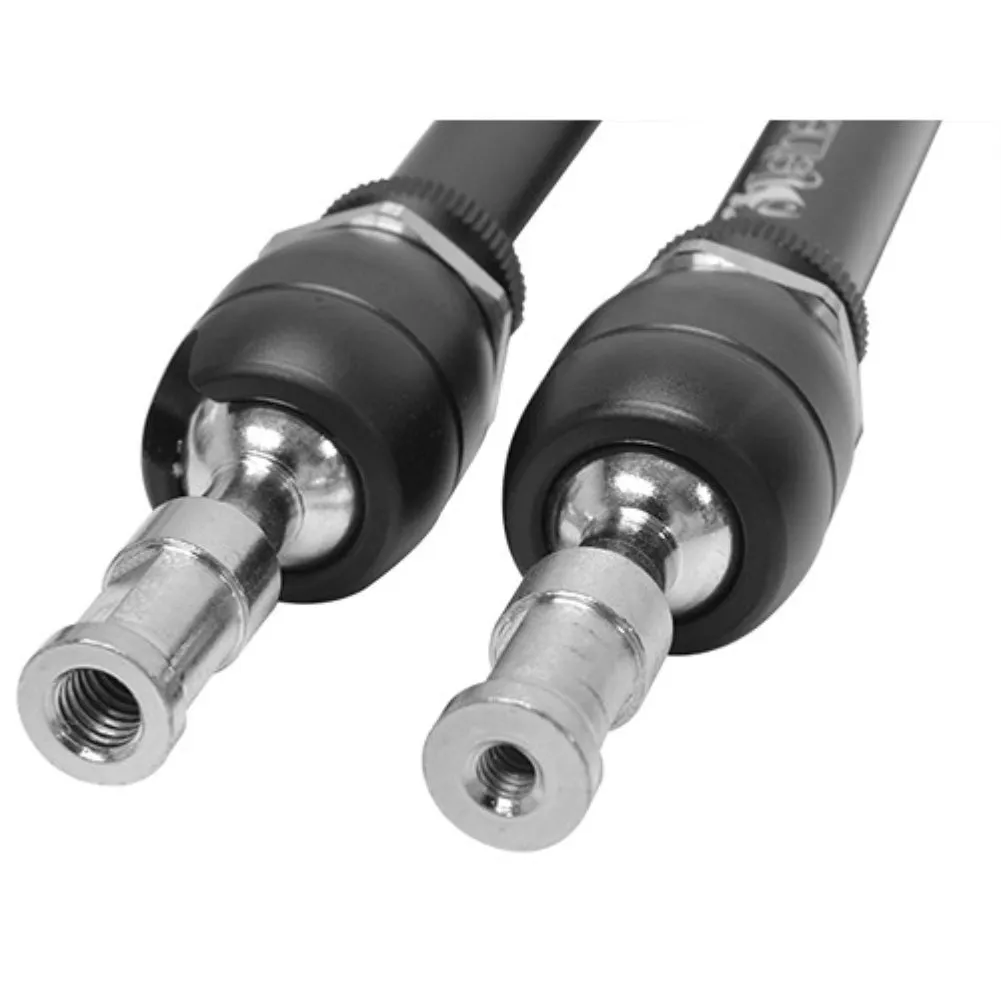

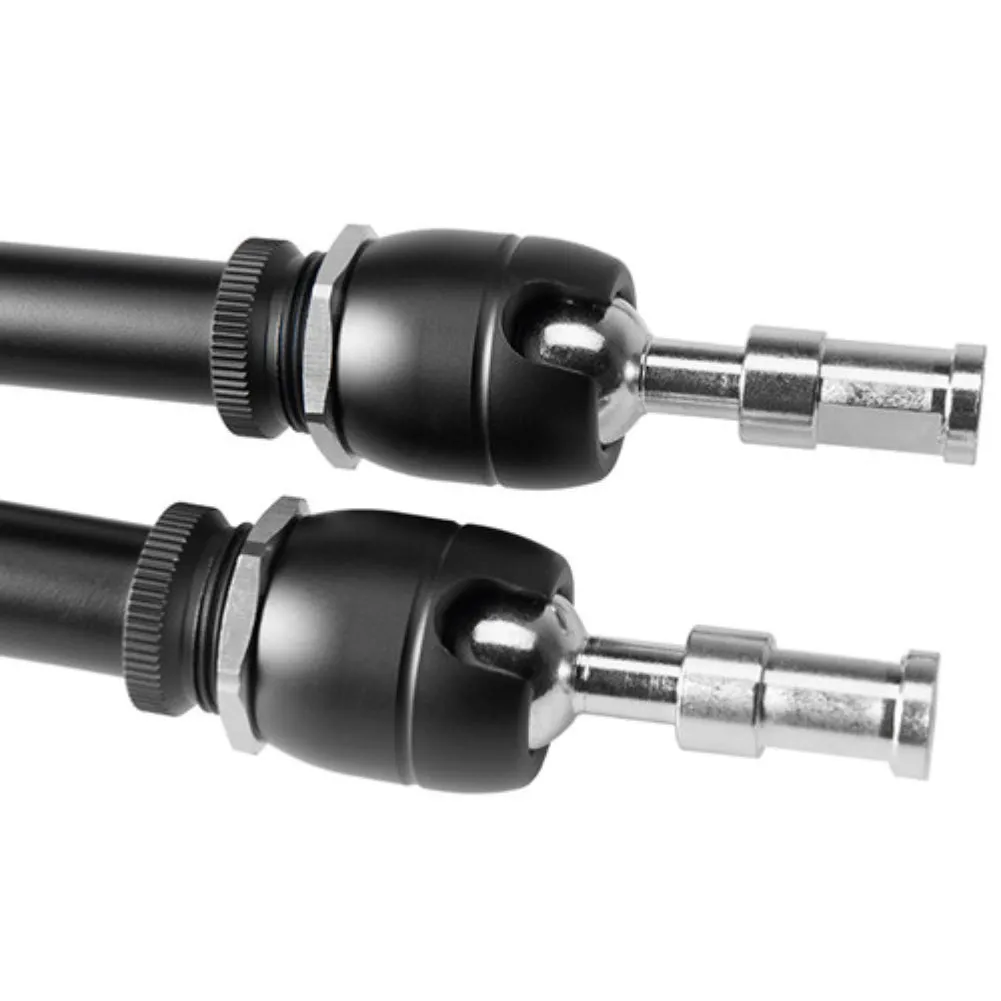

The two 5/8" Baby locking hex stud ball joints rotate 360 degrees, plus a cut-out in each sleeve surrounding the ball allows the stud to be bent 90 degrees. One stud accepts a 3/8"-16 thread, while the other accepts a 1/4"-20 thread for added versatility. Each stud has six milled flat surfaces, so whatever is mounted on the Master Arm, it will not rotate once secured. The central elbow rotates 360 degrees for infinite adjustability.

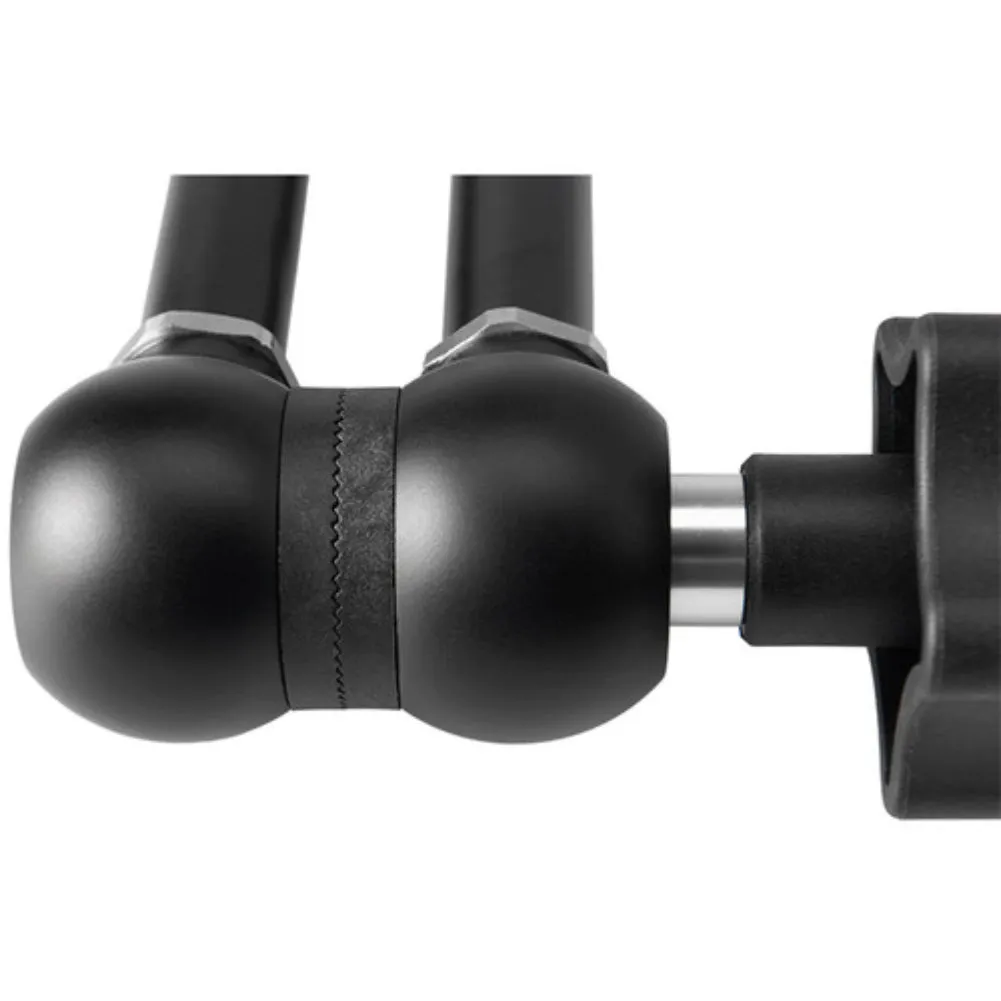

The Arm's center lock is metal construction with locking teeth. Many arms rely on friction and over-tightening of the knob to hold equipment in place, which may cause sagging or small movements over time. Unlike traditional designs, this arm's all metal construction utilizes a locking system which, once set, prevents any movement or sagging, thus achieving precise results and peace of mind when mounting equipment. Additionally, no replacement friction discs or pads are needed.
Compatibility
Specifications
- Three Articulating Joints
- Two Rotating 5/8" Ball Joints
- Center Elbow Rotates 360°
- Center Knob Loosens All Joints
- 5/8" Studs Mate with Standard Clamps
- All Metal Construction
| Material |
Steel
|
| Load Capacity |
Up to 4.4 kg
|
| Maximum Extension |
21" (53.3 cm)
|
| Threads |
3/8"-16 and 1/4-20 threads on each end
|
What's Included
1 x Tether Tools Rock Solid Master Articulating Arm
